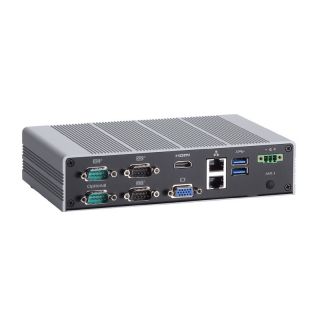

Fanless Industrial System eBOX626-853-FL

Levertijd:
2~7 dagen
SKU
eBOX626-853-FL

Fanless Embedded System with Intel® Celeron® N3150 1.6GHz, VGA/HDMI, 4 COM, 2 GbE, 4 USB, 2 Mini PCIe and 9 ~34VDC Wide Range Input

● Intel® Celeron® processor N3150 1.6 GHz Braswell quad-core SoC onboard
● Supports HDMI and VGA dual independent display
● Supports 4 COM and 4 USB ports
● Dual GbE ports support WoL, Teaming and PXE
● Dual PCI Express Mini Card for WLAN/WWAN/mSATA modules
● 2 PCI Express Mini Card slots and 1 SIM slot
● Supports VGA and HDMI dual display
● 9 ~ 36VDC wide range power input
● -20°C to 60°C wide range operating temperature





Brochure EN

Fanless Embedded System with Intel®Celeron® N3150 1.6GHz, VGA/HDMI, 4 COM, 2 GbE, 4 USB, 2 Mini PCIe and 9 ~36VDC Wide Range Input



Meer informatie
Art.nr.
eBOX626-853-FL
Fabrikant
Axiomtek
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel, IP40
CPU
Intel® Celeron® processor N3150 1.6 GHz Braswell quadcore SoC (2M Cache, up to 2.08 GHz)
System Memory
1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8GB
Chipset
SoC Integrated
BIOS
AMI
System I/O Outlet

1 x RS-232/422/485 (COM1)
3 x RS-232 (COM2/3/4)
1 x VGA
1 x HDMI (4K supported)
1 x Audio (Mic-in/Line-out)
2 x 10/100/1000Mbps Ethernet
3 x USB 3.0
1 x USB 2.0
3 x SMA type connector opening for antenna
1 x VDC 12V power input connector
1 x ATX power switch
1 x Remote PWR switch

Optional 8-CH programmable DIO

Watchdog Timer
255 levels, 1 ~ 255 sec.
Expansion Interface
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
Storage
1 x 2.5” SATA HDD drive bay
1 x mSATA
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
Power Supply
42.5W 10~34V DC
Operating Temperature
-20°C ~ +60°C
Storage Temperature
-40°C ~ +80°C
Humidity
10% ~ 90%, non-condensing
Vibration Endurance
3 Grms with SSD (5-500Hz, X, Y, Z directions)
Grootte
200 mm (W) x 120 mm (D) x 46 mm
Weight (net/gross)
1.2 kg / 1.9 kg
Certification
CE
EOS Support
WES 8, WES 7, Linux
Warranty
2 Years
Fanless Industrial System eBOX626-853-FL aanpassen
Fanless Embedded System with Intel® Celeron® N3150,VGA/HDMI, 4 COM, 2 GbE, 4 USB, 2 Mini PCIe and 9 ~36VDC wide range input
