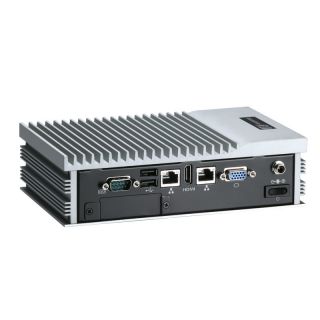

Axiomtek eBOX620-841-FL
Fanless Embedded System with Intel® Atom™ Processor E3845 1.91GHz, HDMI, VGA, 2 GbE LAN, 4 USB and 4 COM
● Intel® Atom™ E3845 1.91GHz quad-core SoC
● High performance DDR3L-1066/1333 SODIMM max. up to 8 GB
● Fanless operation design with full feature I/O
● 2X RS-232/422/485 and 2X RS-232
● Supports 2.5" SATA drive bay, CFast™ slot and mSATA
● Supports 8 channel programmable DI/DO and 2 PCI Express Mini Card slots
● Supports VGA and HDMI dual display
The eBOX620-841-FL supports the latest 22nm quad core Intel® Atom™ E3845 processor. The eBOX620-841-FL is rugged and designed to offer reliable operation in extreme temperature ranging from -40°C to +60°C. Its IP40-rated, rugged aluminum cold-rolled steel enclosure allows it to withstand operations in harsh environments and vibration of up to 3 Grms (with CFast™). The industrial grade embedded platform has full power protection with OVP, OCP, SCP and is CE certified.
2 x RS-232/422/485 (COM1/2)
2 x RS-232 (COM3/4)
1 x VGA
1 x HDMI
1 x Audio (Mic-in/Line-out)
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
3 x SMA type connector opening for antenna
1 x VDC 12V power input connector
1 x ATX power switch
8 channel programmable DI/DO
1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
1 x CFast™
1 x mSATA
1 x orange LED for HDD active
Output: DC 12V @ 5A
