ICPDAS Ethernet I/O Modules
|
Analog Input Modules
|
|||||||
| Model | AI | Protocol | |||||
| Channels | Sampling Rate | Voltage & Current Input | Sensor Input | MQTT | SNMP V2c | ||
| ET-2217 | PET-2217 | 8/16 | 20/200 Hz (total channels) |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA | – | Yes | |
| ET-2217H | PET-2217H | 8 | 8 KHz (total channels, TCP Streaming) |
±2.5 V, 0 ~ +5 V, ±5 V, 0 ~ +10 V, ±10 V, 0 ~ +20 mA, ±20 mA, +4 ~ +20 mA | – | ||
| ET-2215H | PET-2215H | 8 | 1.5/90 Hz (per channel) |
– | Pt100, Ni120, Cu50, Cu100 | ||
| ET-2215H-16 | PET-2215H-16 | 16 | |||||
| ET-2218H/S1 | PET-2218H/S1 | 8 | 1.5/100 Hz (per channel) |
– | Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
||
| ET-2218H-16/S1 | PET-2218H-16/S1 | 16 | |||||
| ET-2218HS-16 | PET-2218HS-16 | 16 | – | Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 Support Standard Thermocouple Connector |
|||
|
Analog Input with Channel to Channel Isolation
|

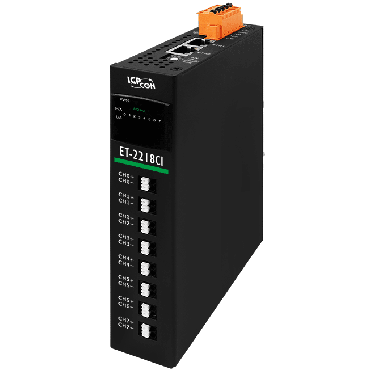

|||||||
| Model | AI | Protocol | |||||
| Channels | Sampling Rate | Voltage & Current Input | Sensor Input | Channel to Channel Isolation | MQTT | SNMP V2c | |
| ET-2217CI-4 | 4 | 10/200 Hz (per channel) |
±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA | – | Yes | Yes | – |
| ET-2217CI | 8 | ||||||
| ET-2215CI-4 | 4 | 200 Hz (per channel) |
– | Pt100, Ni120, Cu50, Cu100 | Yes | ||
| ET-2215CI | 8 | ||||||
| ET-2218CI-4 | 4 | 200 Hz (per channel) |
– | Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
|||
| ET-2218CI | 8 | ||||||
|
Analog Output Modules
|

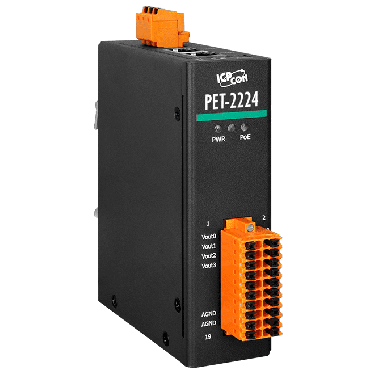

|||||||
| Model | AO | Protocol | |||||
|---|---|---|---|---|---|---|---|
| Channels | Resolution | Voltage Output | Current Output | MQTT | SNMP V2c | ||
| ET-2224 | PET-2224 | 4 | 12-bit | 0 ~ +5 V, 0 ~ +10 V, ±5 V, ±10 V |
0 ~ +20 mA, +4 ~ +20 mA |
Yes | |
| ET-2228 | PET-2228 | 8 | |||||
| ET-2224P | PET-2224P | 4 | 16-bit | ||||
| ET-2228P | PET-2228P | 8 | |||||
| ET-2228-16 | PET-2228-16 | 16 | 12-bit | ||||
| ET-2228C-32 | PET-2228C-32 | 32 | - | +4 ~ +20 mA | |||
|
Analog Output Modules with Channel to Channel Isolation
|
|||||||||
| Model | AO | Protocol | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Channels | Resolution | Voltage Output | Current Output | Channel to Channel Isolation | Over-voltage Protection (OVP) | MQTT | SNMP V2c | ||
| ET-2224CI | PET-2224CI | 4 | 12-bit | 0 ~ +5 V, 0 ~ +10 V |
0 ~ +20 mA, +4 ~ +20 mA |
Yes | – | Yes | |
| ET-2228CI | PET-2228CI | 8 | |||||||
| ET-2224CIS | PET-2224CIS | 4 | Yes | ||||||
| ET-2228CIS | PET-2228CIS | 8 | |||||||
|
Digital I/O Modules
|
|||||||||||
| Model | UDIO | DI | DO | Protocol | |||||||
| Channels | Channels | Contact | Sink/ Source |
Channels | Type | Sink/ Source |
Max. Load @ 25ﾟC | MQTT | SNMP V2c | ||
| ET-2242 | PET-2242 | – | – | – | – | 16 | Open Collector | Sink | 650 mA/Channel | Yes | |
| ET-2242U | – | – | – | – | – | 16 | Push-Pull | Sink/ Source |
500 mA/Channel | ||
| ET-2242U-32 | PET-2242U-32 | – | – | – | – | 32 | 300 mA/Channel | ||||
| ET-2251 | PET-2251 | – | 16 | Wet/Dry | Sink/ Source |
– | – | – | – | ||
| ET-2251-32 | PET-2251-32 | 32 | |||||||||
| ET-2252 | PET-2252 | 16 | * | Wet | Sink | * | Open Source | Source | 450 mA/Channel | ||
| ET-2254 | PET-2254 | 16 | * | Dry | Source | * | Open Collector | Sink | 100 mA/Channel | ||
| ET-2254P | PET-2254P | 350 mA/Channel | |||||||||
| ET-2255 | PET-2255 | – | 8 | Wet/Dry | Sink/ Source |
8 | Open Collector | Sink | 650 mA/Channel | ||
| ET-2255-32 | PET-2255-32 | 16 | 16 | 500 mA/Channel | |||||||
| ET-2255U | PET-2255U | – | 8 | 8 | Push-Pull | Sink/ Source |
|||||
| *Note: The number of DI/DO channels is depending on wiring and the software configuration. | |||||||||||
|
Relay Output/Digital Input Modules
|
||||||||||
| Model | DI | DO | Protocol | |||||||
| Channels | Contact | Sink/Source | Channels | Relay | Sink/Source | Max. Load @ 25ﾟC | MQTT | SNMP V2c | ||
| ET-2260 | PET-2260 | 6 | Wet/Dry | Sink/Source | 6 | Power Relay | Form A (SPST N.O.) | 5 A @ 250 VAC/24 VDC (Resistive Load) |
Yes | |
| ET-2261 | PET-2261 | – | – | – | 10 | |||||
| ET-2261-16 | – | – | – | – | 16 | |||||
| ET-2268 | – | – | – | – | 8 | Signal Relay | 4 Form A, 4 Form C |
2 A @ 30 VDC 0.25 A @ 250 VDC |
||
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed AI - ET-2217H● Web Server for Configuration
● Support TCP Streaming, Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Dual-watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
High Speed 8-ch AI (Differential)
PoE Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed AI - PET-2217H● Web Server for Configuration
● Support TCP Streaming, Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Dual-watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
High Speed 8-ch AI (Differential)
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed RTD Input - ET-2215H● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch RTD Input
● Individual Channel Configuration
PoE I/O Module with 2-port Ethernet Switch, 8-ch High Speed RTD Input - PET-2215H● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch RTD Input
● Individual Channel Configuration
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch High Speed RTD Input - ET-2215H-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch RTD Input
● Individual Channel Configuration
PoE I/O Module with 2-port Ethernet Switch, 16-ch High Speed RTD Input - PET-2215H-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch RTD Input
● Individual Channel Configuration
Ethernet I/O Module with 8-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - ET-2218H/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - PET-2218H-16/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 8-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - PET-2218H/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - ET-2218H-16/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
● Individual Channel Configuration
Ethernet I/O Module with 16-ch High Speed Thermocouple Input, Support Standard Thermocouple Connector - ET-2218HS-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
Support Standard Thermocouple Connector
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, Support Standard Thermocouple Connector - PET-2218HS-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
Support Standard Thermocouple Connector
● Individual Channel Configuration

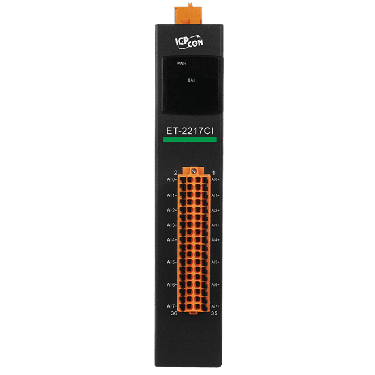

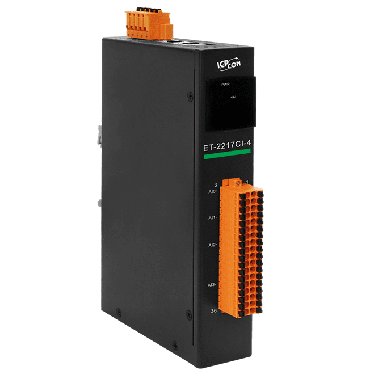

Ethernet I/O Module with 4-ch AI Channel-to-Channel Isolation - ET-2217CI-4● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● Software Configurable Voltage/Current Input
● Adjustable Sampling Rate (200Hz/10Hz per channel)
● Records with Time Stamps for Voltage and Current Measurements
480,000 records/each channel
● Built-in I/O
4-ch AI (Differential)
● 3000V DC Channel-to-Channel Isolation
Ethernet I/O Module with 8-ch AI Channel-to-Channel Isolation - ET-2217CI● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● Software Configurable Voltage/Current Input
● Adjustable Sampling Rate (200Hz/10Hz per channel)
● Records with Time Stamps for Voltage and Current Measurements
320.000 records/each channel
● Built-in I/O
8-ch AI (Differential)
● 3000V DC Channel-to-Channel Isolation
Ethernet I/O Module with 4-ch Analog Outputs - ET-2224● Built-in Web Server
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
● Dual Watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
ICPDAS - PoE Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input - PET-2217● Built-in Web Server
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
● Dual Watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
AI: 8 Differential or 16 Single-ended Analog Inputs
ICPDAS - Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input - ET-2217● Built-in Web Server● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring● Dual Watchdog● I/O Pair Connection (Push and Pull)● Built-in I/OAI: 8 Channels or 16 Single-ended Analog Inputs
ICPDAS PET-7219ZPoE Ethernet I/O Module with 2-port Ethernet Switch, 10 Analog inputs and 6/3 Digital outputs (RoHS)
● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
● Analog Input : 10 Channels with 240 Vrms Overvoltage Protection
● Digital Outputs : 6/3 Channels
ICPDAS ET-7219ZEthernet I/O Module with 2-port Ethernet Switch, 10 Analog inputs and 6/3 Digital outputs (RoHS)
● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
● Analog Input : 10 Channels with 240 Vrms Overvoltage Protection
● Digital Outputs : 6/3 Channels
ICPDAS ET-7218ZEthernet I/O Module with 2-port Ethernet Switch, 10 Thermocouple inputs and 6/3 Digital outputs (RoHS)
● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
●Termocouple Input: 10 Channels
●DO: 6/3 Channels
