ICS Modbus RTU Interface 4899A
GPIB to Modbus RTU Interface
● Converts simple ASCII commands into Modbus RTU messages. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set now includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides both singe ended RS-232 and balanced RS-422/RS-485 serial signals. Connects to single and multiple Modbus devices.
● GPIB Interface is IEEE-488.2 Compliant. Meets latest GPIB Standards.
● Saves GPIB address and serial interface settings in nonvolatile memory. Configures unit without having to remove the cover.
● Front panel LEDs show address and status. Visual indication of operation and test status.
● Small 1 U high, metal box design has CE approval. Rugged case with full EMI/RFI protection.

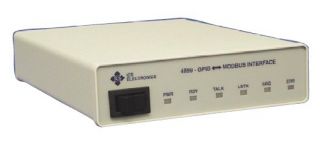

ICS 4899A GPIB<->Modbus Interface is an IEEE 488.2/GPIB to Serial Interface that adapts Modbus slave devices to the GPIB or HP-IB bus. The ICS Modbus RTU Interface 4899A lets the user send simple read-write messages on the GPIB bus to control and query slave Modbus devices. The 4899A does all of the Modbus packet formatting and handles the response packets. The ICS Modbus RTU Interface 4899A has both RS-232 and RS-485 interfaces so it can be connected directly to a single Modbus slave device or it can be connected to multiple Modbus devices via an RS-485 network. The 4899A firmware has an expanded Modbus command set and now includes 32-bit floating point commands so it can control newer temperature controllers. The ICS Modbus RTU Interface 4899A is fully backward compatible with the earlier 4899.
IEEE 488 Bus Interface |
|
||||||
Address Capability | Primary addresses 0 ~ 30 | ||||||
Buffers |
|
||||||
Status Reporting Structure | IEEE-488.2 and SCPI Status Byte, ESR, Questionable and Operational Registers. | ||||||
SRQ Generation | SRQs are generated per the IEEE-488.2 specification if the unit is not addressed to talk, if SRQs are enabled and if an enabled register bit occurs. | ||||||
488.2 Commands | *CLS, *ESE, *ESE?, *ESR?, *IDN?, *OPC, *OPC?, *PSC, *RST, *SAV, *SRE, *SRE?, *STB, *TST?, and *WAI. | ||||||
SCPI Commands |
|
Full duplex serial interface with single ended RS-232 and differential RS-422 (RS-485) signals. Signal selection made by jumpers on the 4899A. RS-485 half duplex operation enabled with a SCPI command.
RS-232 Signals | TxD, RxD, RTS, CTS, DSR and DTR |
RS-422 Signals | Tx and Rx pairs |
Baud Rates | 300, 600, 1.2K, 2.4K, 4.8K, 9.6K, 19.2K and 38.4K baud |
Data Bits | 7 or 8 bits |
Parity | Odd, Even or None |
Stop Bits | 1 or 2 |
Watlow F4, 96, SD and EZ Zone series
Cincinnati SubZero EZT550
Controls | |
Power | Front-panel switch |
Indicators | |
PWR | On when power applied |
RDY | On when passed self test |
TALK | On when addressed to talk |
LSTN | On when addressed to listen |
SRQ | On when asserting SRQ |
ERR | On when ESR error bits set |
Operating Temperature | -10 °C ~ +55 °C |
Storage Temperature | -20 °C ~ +70 °C |
Humidity | 0-90% RH without condensation |
Shock/Vibration | Normal handling only |
Construction | All metal case |
Configuration Disk with menu driven configuration programs for ICs, NI and compatible GPIB Controller Cards
UL/CSA/VDE approved AC power adapter
