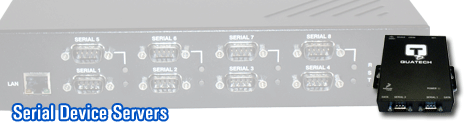

Serial Device Servers
Quatech leads the device networking industry with a full line of premium and industrial grade device networking solutions. Our premium line of wired serial ethernet Device Servers provide the most powerful microprocessor (PowerPC®) and the lowest latency available. Easy to install and configure, our premium Device Servers support wired and secure 802.11 wireless networking applications and are available with one to eight serial ports. Quatech Device Servers may also be known as network serial port servers, serial servers, ethernet serial adapters serial console servers and terminal servers.
4 artikel(en)
per pagina
-
Quatech Device Server SSEW-100D
1 port RS-232 Industrial Wireless Device Server
● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature -
Quatech Device Server SSEW-400D
1 port RS-232/422/485 Industrial Wireless Device Server
● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature -
Quatech Device Server DSEW-100D
2 port RS-232 Industrial Wireless Device Server with DB-9M ports
● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature -
Quatech Device Server DSEW-400D
2 Port RS-232/422/485 Wireless Device Server with DB-9M ports
● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature
