GETAC MX50 - Volledig robuuste tablet

Levertijd: 4-6 Weken

Kenmerken

GETAC FULL RUGGED TABLET


● 480 NITs LumiBond® display met Getac zonlicht afleesbare technologie
● Intel® Atom™ X5 Z8350 Processor 1.44GHz
● Behuizing van magnesium legering
● MIL-STD-810G, IP67 en MIL-STD-461G gecertificeerd
● 5.7" IPS TFT LCD HD Display
● Capacitieve multi-touch LCD
● Geïntegreerde SiRFstarIV™ GPS

Details

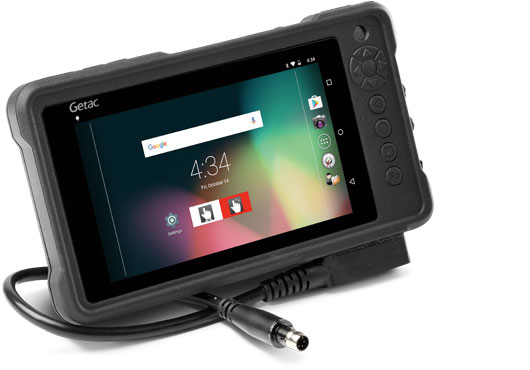

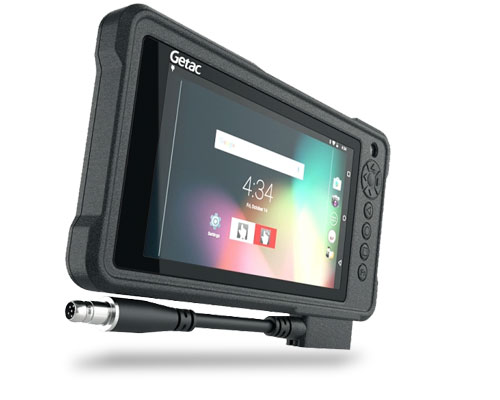

GETAC MX50





BATTLE READY,
FULLY SECURE.

The MX50 has been designed to meet the data input and output requirements of the digital dismounted soldier and is the first wearable product designed by Getac to address the requirements of the defence sector. With a 5.7" screen & Intel® Atom X5 processor, the MX50 meets battlefield SWaP requirements

MX50

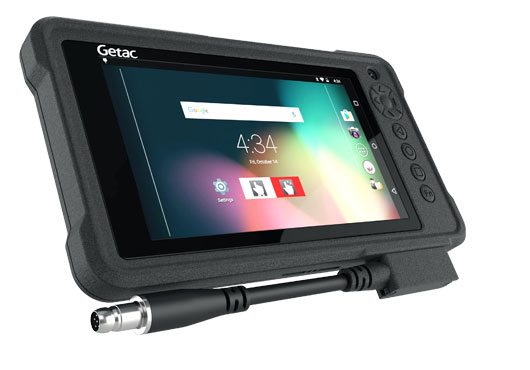

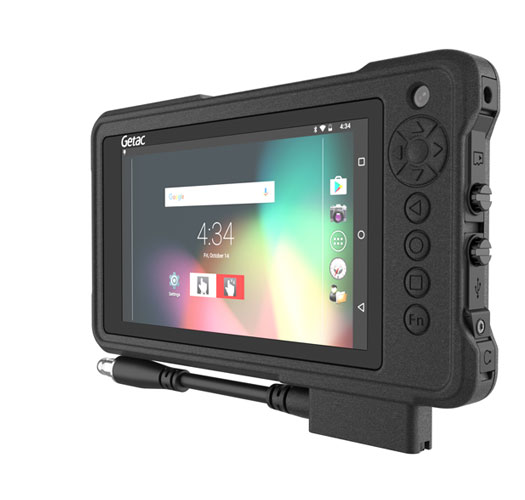

Compact & Lightweight

The MX50's reduced size and weight means that dismounted soldiers can have the advantage of digital battlefield awareness without compromising their endurance or freedom of movement.

MX50
MX50

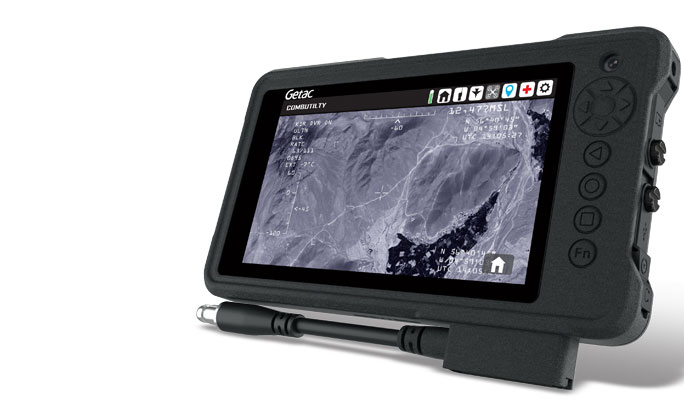

Power Efficiency Built-in

The MX50 is configured with the Intel® Atom™ x5 Processor. This new generation Atom™ processor is optimised for energy efficiency but has a quad-core chip as well as Intel® HD graphics, so it can deal with even very demanding graphic applications.

MX50

MX50

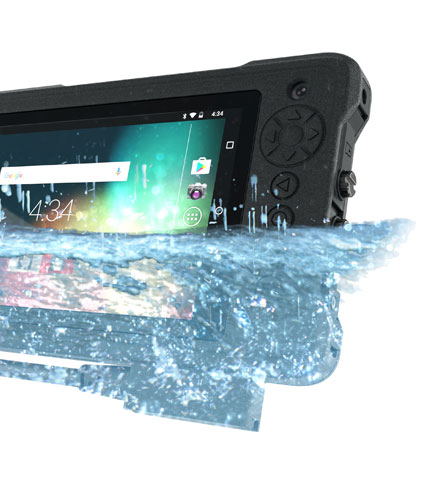

Water Resistant

Operational performance cannot suffer because you get wet. That's why we've designed the MX50 to be water resistant rated to IP67, so it can go where you do.

MX50

MX50     MX50

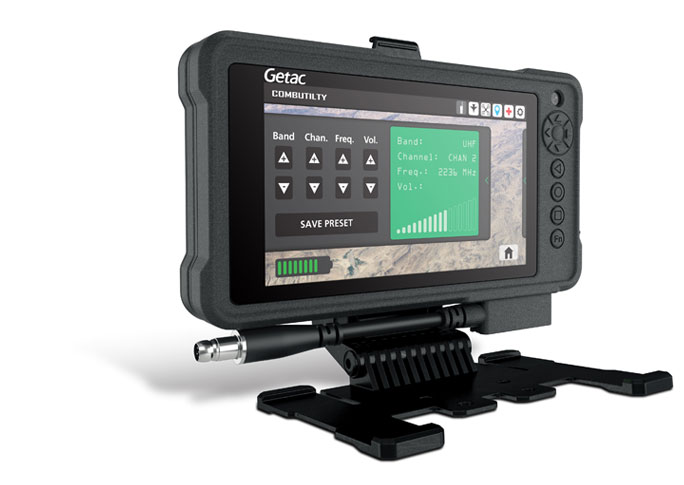

Customised-Off-The-Shelf (COTS)

The MX50 is designed to be deployed as part of an integrated soldier system and is available with a rugged cable with a choice of connectors. Getac is an industry leader in mobile connectivity but we understand than a devices ability to connect wirelessly is sometimes a weakness so the MX50 can also be configured without wireless comms if required.

MISSION-CRITICAL SECURITY

The MX50 is designed and built to keep your data safe in extreme physical scenarios. It has been approved for U.S. Government use by the NSA under the Commercial Solutions for Classified (CSfC) program.

MX50

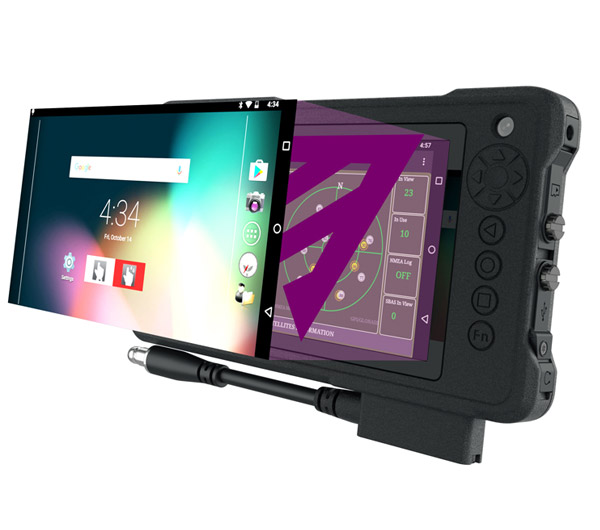

Secure Data-At-Rest

For customers who require Next Generation Data Protection™ to secure data-at-rest we can offer Trivalent’s leading-edge software, Trivalent Protect™. Through a unique process of encryption, data shredding and secure storage, Trivalent ensures vital data is protected in real-time from unauthorised users.

MX50

MIL-STD 810G

Certified to MIL-STD-810G for ruggedness, the MX50 has been tested to endure drops, knocks, dust & water ingress, temperatures from -21°C to 60°C and low pressure altitudes.

MX50

MIL-STD 461G

MIL-STD-461G is the revised Military standard and testing specification to ensure the conducted emissions (CE), conducted susceptibility (CS), radiated emissions (RE), and radiated susceptibility (RS) of a system can meet the requirements for the control of electromagnetic interference.

MX50Platform Stability

As a supplier to the Defence sector for over a quarter of a century Getac understands the need for deployed systems to be supported and stable in configuration for longer than is typically available from consumer products. We can also offer warranty extensions beyond the standard 3 years depending on project requirements. All this ensures the device delivers excellent value for money over it's life.

MX50

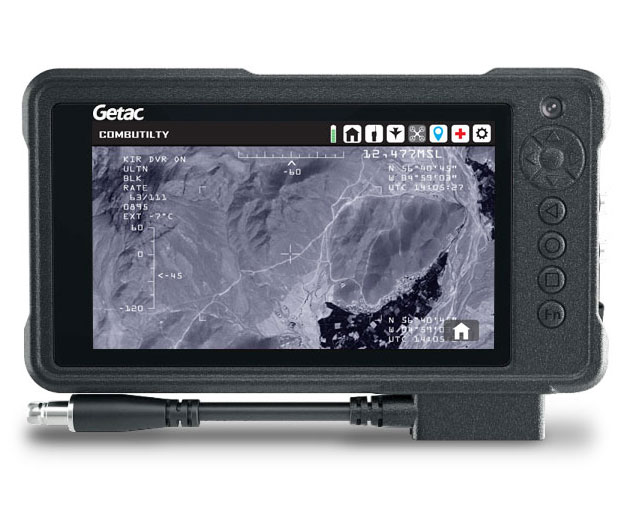

Optimum Display

Big enough to share information and small enough to minimise weight, the MX50's 5.7" display is optimised for the dismounted soldier. The HD screen clearly displays even complex information and the brightness can be increased to view in direct sunlight or dimmed to be used with night-vision goggles.

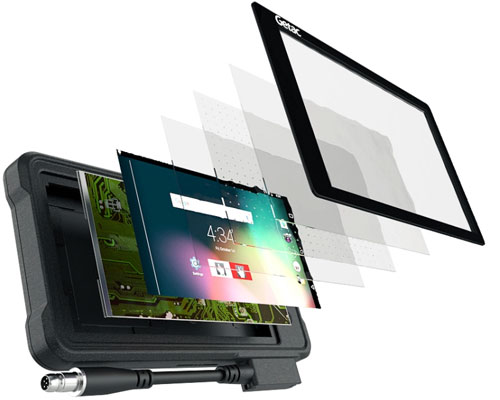

LumiBond® 2.0: Better, Brighter, Stronger

The MX50 uses our revolutionary LumiBond® 2.0 technology to achieve a display that is more readable and offers better contrast and more crisp colours than any other rugged tablet display. By bonding the display glass with the touch panel and LCD, we’ve created a single panel that is more durable, minimises glare and improves readability. Four advanced touch modes (Rain-Touch, Glove or Pen mode, plus an optional Digitizer mode) and the included hard-tip stylus enable you to interact with applications in any environment.

MX50
MX50

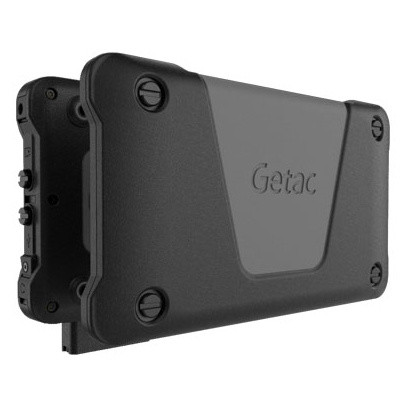

SnapBack Power

The MX50 is designed to integrate with the other elements of the soldier system including the auxiliary power pack. However, if the device is required to operate independently for extended periods, then the SnapBack battery can be attached to increase operating time.

Android OS

Apps have changed the way we access and enter data remotely. Android OS makes it easy to build a custom app or use one of the forward operating utilities available on the market today.

MX50

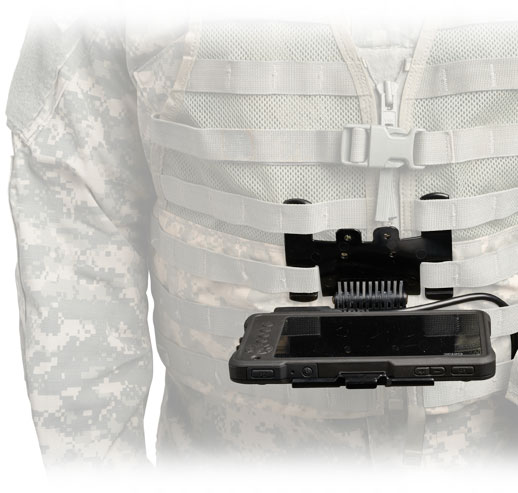

Flexible Mounting

The MX50 has been designed to be fully interoperable out of the box with current and legacy soldier systems. The chest-mount is designed to integrate with a standard issue MOLLE vest, providing hands-free carry and ease of access.

MX50

Built to Survive

The MX50 is certified to the highest military standards and tested by independent internationally recognised laboratories.

MX50

Less Downtime When It's Crunch Time.

The MX50 is designed not to fail, but if it ever needs to be serviced, Getac offers unmatched coverage that will ensure you get your device fixed and back on the job fast. Nothing says quality like a manufacturer standing behind their product. We've designed the MX50 rugged tablet from the inside out to survive drops, shocks, spills, vibration and more. We're confident in our quality and that's why the rugged MX50 comes standard with 3 years Pack & Collect warranty. It's the peace-of-mind protection of knowing you're covered.

MX50

Specificaties

Artikelnummer MX50
Fabrikant GETAC
Documenten

Download PDFDownload PDF Brochure

Operating System

Android 5.1

Rugged Features

MIL-STD 810G and IP67 certified
MIL-STD 461G ready
5 feet drop resistant
Vibration, drop, temperature & humidity resistant

CPU Intel® Atom X5 Processor Z8350 1.44GHz, burst up to 1.92GHz
Memory 2GB LPDDR3
Storage 64GB eMMC
Optional 128 GB eMMC
VGA Controller Intel® HD Graphics
Scherm 5.7” HD (1280 x 720) TFT 480 NITs QuadraClear™ sunlight readable LED
Display with capacitive multi-touch
Lumibond® Display
Optional dual-touch mode (multi-touch and digitizer)
Pointing Device Touchscreen
- multi-touch touchscreen (capacitive type)
- Glove On
Expansion Slots 1 x MicroSD slot x 1
Memory Card Reader 1 x MicroSD slot x 1
I/O Ports HD webcam x 1
8M pixels auto focus rear camera x 1
Micro USB OTG x 1
Headphone out/Mic-in Combo x 1
Optional Rugged Connector x 1
Communication Interface Wi-Fi 802.11n
Bluetooth (v4.0)
Dedicated GPS
Security NIAP CSfC Certified
Power Li-Ion battery (3.7V, 4200mAh)
Optional MIL-STD-461G AC adapter (65W, 100-240VAC, 50 / 60Hz)
Dimensions & Weight 188 x 105 x 18 mm
0.40kg (0.88 lbs)
Environmental Spec Operating temp: -21°C to 60°C
Storage temp: -40°C to 71°C
Humidity: 5% to 95% RH, non-condensing

Configureren

Getac v110 G3 - Fully Rugged Convertible Tablet

Getac MX50 / Basic Configuration:

● Intel® Atom™X5 Z8350 Processor 1.44GHz
    (Max. 1.92GHz with Intel® Turbo Boost Technology)

● 5.7" HD (1280x720) 480 NITs LCD
● Multi-touch Touchscreen
● 2GB LPDDR3 RAM
● 64GB eMMC
● -21°C ~ 60°C Operating Temperature
● Wi-Fi 802.11n
● Bluetooth® (V4.0)
● HD Webcam
● Li-Ion battery(4200mAh)
● IP67 / 810G / 461G Platform Ready
● Android 5.1
