iRuggy G8s Volledig Robuuste Tablet

Levertijd: 2-4 Weken

Kenmerken

G8s Fully Rugged Tablet
8” Windows / Android Tablet


● Intel Quad Core x7-Z8750 1.6GHz processor
● 1280 x 800 WXGA resolution LCD panel
● Available with Windows OS / Android 7.0
● User-selectable touch mode sensitivity (Stylus, Hand, Rain or Glove)
● 8,000 mAH (3.7V) long battery life, hot swappable for uninterrupted use during long shifts
● IP65 rated protection and design built survive 1.2 meter drop testing
● Optional Modules Available: Smart Card Reader, Fingerprint reader, 1D/2D barcode Scanner
● WLAN, Bluetooth 4.0, and optional LTE  and GPS
● Camera module supports 8M pixel with auto focus and LED flash
● Wide modular expansion design for data capture
● 1D/2D optical scanner
● Capacitive fingerprint reader
● HF RFID reader
● MSR




Details

G8s Always Ready, Always Rugged,
uncompromised performance

The Intel Atom Processor X Series provides Quad-Core performance and excellent battery life. The Intel x7-Z8750 features Secure Boot and new baseline security with the new AES instructions (Intel AES-NI) for faster data encryption with no performance compromise. Windows 10 has faster start-up time and smoother multitasking abilities using the X Series.



Poindus G8s Rugged Tablet

G8s Intel Quad Core x7-Z8750

Intel Quad Core x7-Z8750

G8s User-selectable touch mode sensitivity

4 user selectable
touch modes

G8s Intel Wireless AC

Wifi 802.11
a/b/g/n/ac

G8s Hot swap battery

HOT Swappable
 battery

G8s Mil-STD810G

MIL-810G

G8s IP65

IP65

G8s Bluetooth

Bluetooth

G8s 4G / LTE

4G / LTE

G8s GPS

GPS (GNSS)



Improving Workstation Ergonomics
Means to Be Mobile

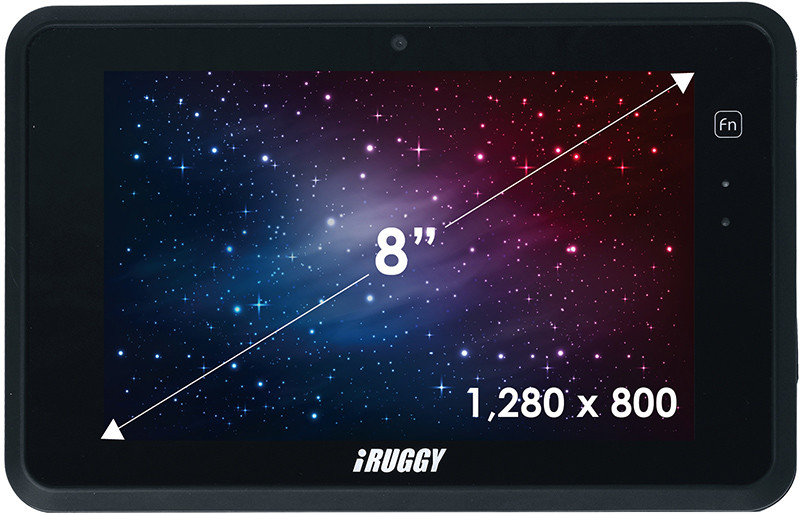

Workers increasingly interact with mobile devices, taking advantage of the benefits and flexibility mobility provides. Ergonomic design is an important factor in Enterprise Mobility products as they are designed to be carried for hours. The G8s tablet is lightweight at only 850g and the 8” 1280×800 WXGA display has been built with ergonomic design optimized for comfort and ease-of-use in extended mobile operation.

The perfect companion is ready to go anywhere.

G8s Rugged Tablet

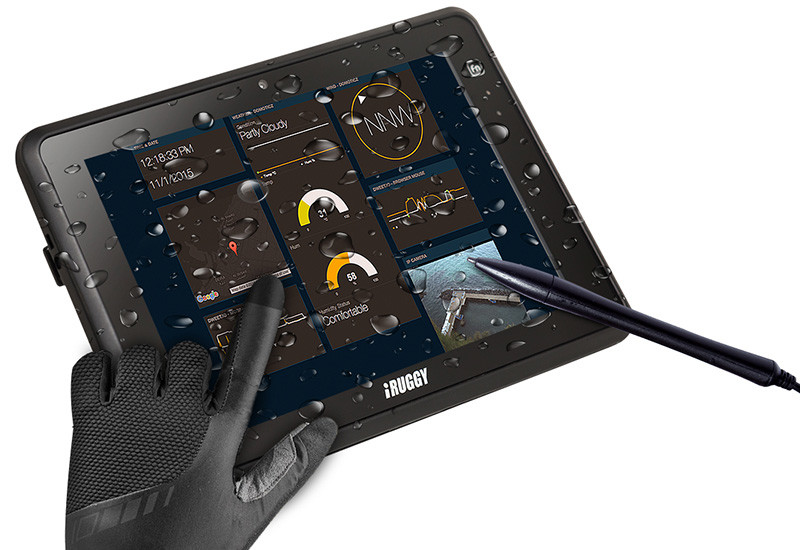

Multiple Touch Mode Support – Hand, Glove, Stylus or Rain

 G8s Rugged Tablet

The G8s configurable touch mode is designed to support indoor or outdoor Logistic, industrial or field service tasks. The G8s touch modes can be switched between modes simply with the dedicated button; select between hand, glove, stylus or rain to suit the working conditions.

Hand Mode: 5-point touch input fully supporting today’s gesture-based apps.
Glove Mode: No need to compromise on safety or warmth.
Stylus Mode: Optional tethered stylus with 2mm nib for precise data entry and complex menu navigation.
Rain Mode: Cloudy sky? No problem!

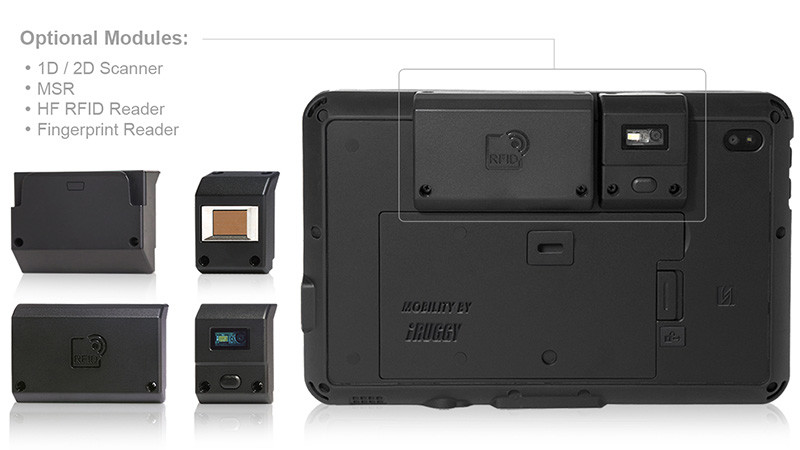

Robust Module-Based Expansion for Precise & Convenient Data Collection

The G8s provides optimal configuration through a modular approach, featuring 3 universal bays that allow flexible expansion to suit multiple applications. Support for Barcode 1D/2D scanner, HF RFID, Fingerprint readers, and MSR; additionally brackets are available for 3rd party mPOS devices, LAN/COM module (by request), giving the G8s the flexibility you demand.

The built-in camera supports 8M pixels (Rear) & 2M pixels (Front) with auto focus and LED flash.

G8s Rugged Tablet

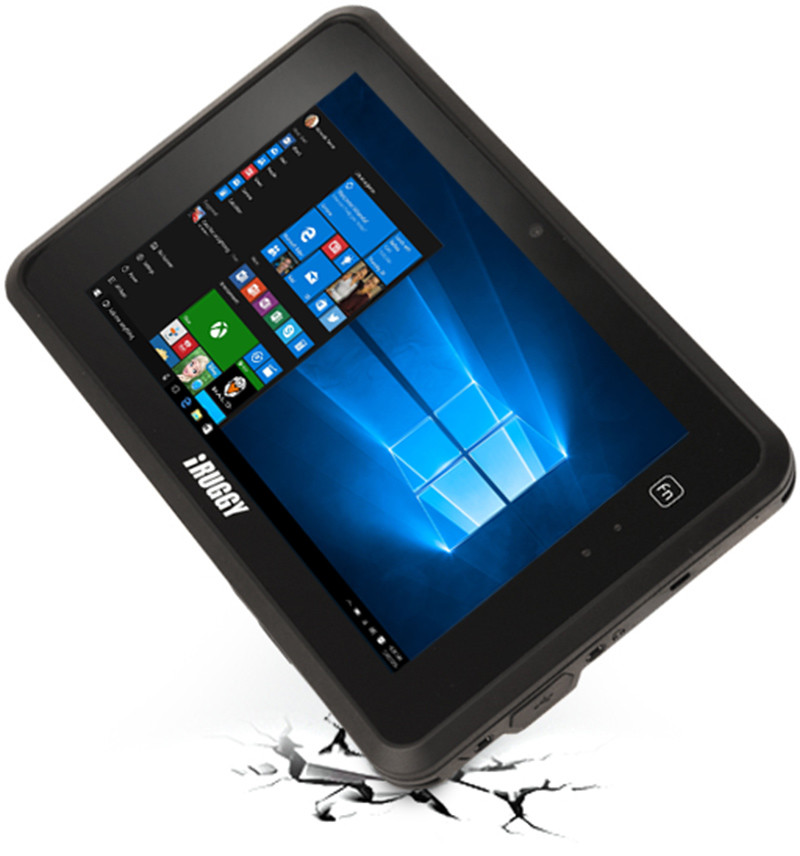

Built to Survive from
Any Extreme Working Scenario

Protected against dust, liquids, shock, vibration, drop tested to 1.2 meter (4 feet) onto plywood over concrete and extreme operating temperatures from -10°C to 50°C, the G8s is the perfect mobile device to take into any environment.

Rated at IP65-Ingress Protection and MIL-STD-810G the G8s is built rugged for extended life, indoors or outdoors.

The G8s provides reliable connectivity and wireless communication with Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.0+LE, optional 4G LTE ready to operate on any carrier, and accurate GNSS.

Shipped with Windows® 10 IoT Enterprise or Android 7 and 64GB Storage, 4GB RAM support industrial application requirements.

G8s Rugged Tablet





Specificaties

Artikelnummer G8s
Fabrikant Poindus
Documenten

Download PDFDownload PDF Brochure

Operating System Windows 10 IoT Enterprise
Android 7
CPU

Intel® Atom X7-Z8750 Quad-Core 1.6GHz (up to 2.56GHz)

Memory 4GB
Storage

64GB eMMC
Micro SD Card slot

VGA Controller Intel HD Graphics
Scherm 8” WXGA Display (1280x800 pixels)
5-point capacitive multi-touch
Supports Hand Mode, Glove Mode, Stylus Mode (with optional tethered stylus with 2mm nib for precise data entry and complex menu navigation) and Rain Mode:
X Bay 8M Rear Camera with LED flash
2M Front Camera
Pointing Device 5-point capacitive multi-touch
Optional tethered stylus with 2mm nib for precise data entry and complex menu navigation.
Expansion Slots

3 Universal bays for flexible expansion:
- Barcode 1D/2D scanner module
- HF RFID Module
- Fingerprint reader Module
- MSR Module

Memory Card Reader micro SD Card slot
I/O Ports 1x Micro USB 2.0 support OTG
1x Audio
1x Mic
1x micro SD
1x DC-In
1x Docking connector
Communication Interface WiFi 802.11 a/b/g/n/ac
Bluetooth 4.0+LE (Class 2)
Integrated GPS (Dedicated GNSS option)
NFC
Integrated 4G / LTE (optional)
Security Fingerprint scanner (optional)
Power Universal AC 100V ~ 240V, 50~60Hz Input;
5VDC@4.0A,
Battery: 8.000mAh
Dimensions & Weight 234 x 152 x 26 mm
850 g (incl. battery)
Environmental Spec IP65 and 1,2m drop resistant
MIL-STD810G :
operating temperature: -10˚C ~ 50˚C, max. 35˚C when Charging Battery, 90% RH non-condensing

Configureren

Getac F110 - Fully Rugged Tablet

Poindus iRuggy G8s WINDOWS & ANDROID TABLET - Standard Configuration:

● Intel® Atom X7-Z8750 Quad-Core 1.6GHz (up to 2.56GHz)
● 4GB memory
● 64GB eMMC onboard
● Micro SD slot
● 8 inch 1280 x 800 (WXGA) Display
● Multi-touch
● Wireless LAN 802.11 a/b/g/n/ac
● Bluetooth 4.0+LE (Class 2)
● NFC
● Windows 10 IoT Enterprise or Android 7

I/O & Expansion
Micro USB 2.0 (Support OTG)
1W Speaker
2MP front camera
8MP auto focus rear camera with LED flash

Battery & Power
3.7V 8000 mAh Battery
DC-in with external AC adapter (Output 5V DC, 4A, Input 100-240VAC, 50/60Hz) for charging

IP65, 1.2 meter drop specification

Dimension ( Wx H x D ): 234 x 152 x 26 mm
Weight: 850 g

Environmental
Operating Condition
-10˚C ~ 50˚C, max. 35˚C when Charging Battery, 90% RH non-condensing

Storage Condition
-20˚C ~ 70˚C, 90% RH non-condensing
