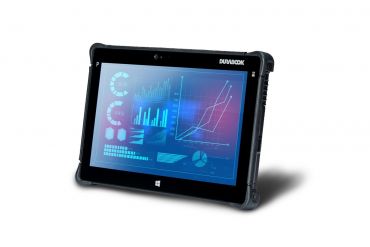

DURABOOK R11 G3 - Lichtgewicht Rugged Tablet

Levertijd:
Uit voorraad leverbaar
SKU
R11

DURABOOK R11 G3 - Lichtgewicht volledig robuuste tablet

● 8ste Generatie Intel® Quad Core™ i5 / i7 Processor
● 11.6" Full HD display met aanraakscherm
● Helder Zonlicht afleesbaar optisch gebonden display
● Exclusieve aanraaktechnology geschikt voor latex handschoenen en zelfs natte omgevingen
● Leverbaar met geïntegreerde 4G / LTE en GPS
● 5MP Camera met Flash
● Optioneel met geïntegreerde 1D/2D barcode lezer
● Windows 10 Professional
● Ultra lichtgewicht, slechts 1.2 kg
● IP65 Soft en Water beschermd
● Mil-STD810G schok, val en trilling gecertificeerd


PORTABILITY AND POWER FOR A PRODUCTIVE MOBILE WORKFORCE

The Durabook R11 now has the latest Intel® 8th Generation CPU, Intel® UHD 620 graphics processor, DDR4 memory, Intel® Dual Band Wireless AC 9260, and Bluetooth V5. The Durabook R11 is delivering the highest levels of performance and connectivity available for mobile workers who are being asked to do more complex and demanding tasks in the field.

Durabook R11 G3 - Fully Rugged Tablet

CUSTOMIZABLE TECHNOLOGY
Maximum Connectivity

The R11 offers fast, seamless connectivity boosted by multi-carrier 4G LTE capabilities. The dedicated GPS for precise positioning and accuracy the fully rugged R11 is designed for mobile workers and law enforcement use.

Durabook R11 G3

Durabook R11 G3 Lightweight

PORTABILITY WITHOUT SACRIFICE

Mobile workers crave performance and reliability, not bulk and weight. At 19.5mm thick and only 1.2 kg, the Durabook R11 is the most compact and easily portable fully rugged tablet in its class, making it the mobile computer workers want in their toolkit.

Durabook R11G3

RELIABLE UNDER ANY CIRCUMSTANCE

The Durabook R11 exceeds the capabilities of standard tablets and detachable computers by meeting MIL-STD-810G requirements for drop, vibration, temperature extremes and more, as well as offering an IP65 rating and ANSI 12.12.01 C1D2 certification. With the R11, failure is not an option. With up to 16 hours of life on a single charge of its high-capacity battery, Durabook R11 users can focus on the task at hand, confident they can a perform a full day’s work without ever needing to plug in.

Durabook R11 G3 Rugged Tablet



Durabook R11 G3 Rugged Tablet




PURPOSE BUILT FOR MOBILE WORKERS

When your office includes rain, cold, bright sunlight and more, you need a device that’s purpose built. The Durabook R11 features a sunlight readable 11.6” FHD (1920 x 1080) LCD with Durabook’s proprietary DynaVue® technology for exceptional viewability in direct sunlight. The device has a 10-point capacitive multi-touch panel that can be used with a glove, stylus, or a finger, even in the rain!




Download PDF



Meer informatie
Art.nr.
R11
Fabrikant
Durabook
Operating System

Windows 10 Professional

Rugged Features
Dust & Water Proof     IP65
Drop MIL-STD 810G 516.6 Procedure IV, 6 drops from 4 feet height to plywood over concrete
Vibration MIL-STD 810G 516.6 Procedure I Cat. 24, Fig. 514.6E-1
Temperature Operating: -10°C ~ 55°C
Humidity 5% ~ 95%
Altitude Operating: 15.000 feet
CPU

Intel® Core™ i5 Technology
Intel® Core™ i5-8250U Processor 1.6GHz
Max. 3.4 GHz with Intel® Turbo Boost Technology
- 6MB Intel® Smart Cache

Intel® Core™ i7 Technology
Intel® Core™ i7-8550U Processor 1.8 GHz
Max. 4.0 GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

Intel® Core™ i7 vPro™ Technology
Intel® Core™ i7-8650U vPro™ Processor 1.9GHz
Max. 4.2 GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

Memory

8GB RAM DDR4 (max. 16GB RAM)

Storage

SSD 128GB ~ 500GB

VGA Controller

Intel® UHD 620

Scherm

11.6” FHD (1920 x1080)
500 nits Dynavue® sunlight readable display with capacitive multi-touch Screen
Support touch mode for Finger/Water, Glove, or Stylus function
Build-in Ambient Light Sensor

X Bay

Expansion Slots:
Optional 1D/2D Barcode Reader
Optional RJ-45 x 1 or Smart Card / CAC Reader or RFID¹

Pointing Device

Capacitive Multi-Touch

Expansion Slots
1 x Micro SD card slot supports SDHC & SDXC
Memory Card Reader
Micro SD / SDHC / SDXC
SIM card
Smart Card Reader

Optional expansion module with Smart Card Reader / CAC Reader

I/O Ports
2 x USB 3.0
1 x 3.5mm combo jack for Mic/Headset
1 x SIM card slot for WWAN data communication
1 x Expansion Connector for Expansion Modules
1 x Docking Connector
2 x RF pass-through connectors for WWAN & GPS
Communication Interface
Optional: 4G/LTE WWAN + GPS or Dedicated GPS
WLAN: Intel® Dual Band Wireless-AC 9260 802.11ac
Bluetooth: v5.0
Beveiliging

Kensington Lock
TPM 2.0
Administrator Password/Boot password
Computrace® Ready

Power

Removable Lithium Polymer Battery, 11.1V, 4130 mAH, 3S1P, 46W
Up to 8h battery life
Optional High Capacity Removable Lithium Polymer Battery
Up to 16h battery life
Adapter: Output: 19V, 3.42A; 65W,
Input: 100V-240V, 50Hz-60Hz,

Green Design
RoHS/REACH compliant, EPEAT compliant
Certifications
US: FCC, DOC+, CUS, FCC ID
EU: CE, CB
CAN: CUS, IC

Dimensions & Weight
298.5 (W) x 192.0 (H) x 20 (D) mm
Weight: 1230 gram (weight may vary depending on configuration)
Environmental Spec
Drop Specification

6 face drops of 48 inches to plywood over concrete with unit on with SSD 1 unit to pass
26 drops of 36 inches to plywood over concrete with unit on with SSD 5 unit to pass

Note: All external optional devices like MSR+ Smartcard reader, MSR, HF RFID, WWAN dongle do NOT need to pass the drop specification.

MIL-STD 810G 516.6 Procedure IV(Modified)

Operating Temperature -10°C to +55°C MIL-810G Method 501.5 Procedure II modified
Storage Temperature  -33°C to +71°C MIL-810G Method 501.5 Procedure slimatic category A1 - Hot Dry (modified)
and MIL-STD-810G Method 502.5, Procedure I climtaic category C1 - Basic Cold
Humidity 95%
Vibrations operating

Fig. 514.6E-1

MIL-STD 810G 514.6 Procedure I Cat. 24
Spill Proof IEC 60529 IP-4X standard
Dust Proof IEC 60529 IP-5X standard
Steel Ball impact test

Glass t hickness: 1.1mm
Steel Ball weight: 227g
Impact height: 90 cm
One drop in center of the glass.
(based on QRS test condition)

Altitude operating 4572m MIL-STD-810G Method 500.5
Altitude non-operating 12192m MIL-STD-810G Method 500.5
