The noticeable edge computing device provides solutions as Edge AI embedded system, specifically designed for video analysis, object classification, computer vision, quality control and more. “Under the ultra-compact enclosure design, the AIE500-901-FL comes with 32GB eMMC onboard and is equipped with one M.2 Key M 2280 SSD slot with PCIe and SATA signal and one Micro SD slot for massive data processing and AI applications. Besides, this reliable embedded system has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections,” said Annie Fu, a product manager of Product PM Division at Axiomtek.

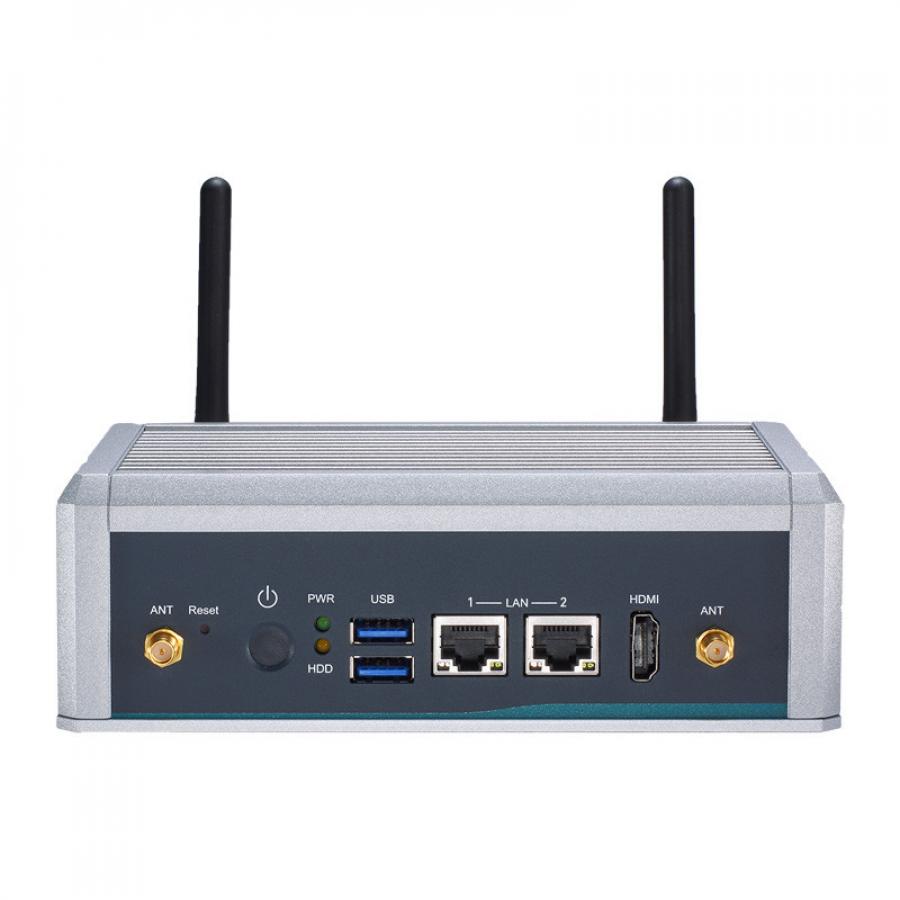

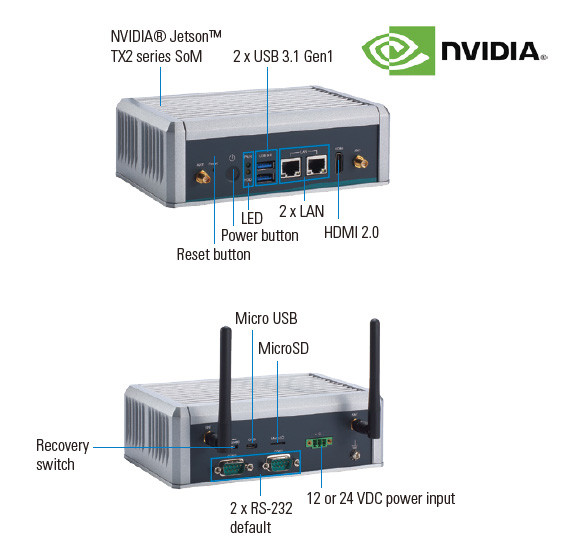

This outstanding fanless embedded system features a diverse design of I/O interfaces, including one HDMI 2.0 port, two USB 3.1 Gen1 ports, two GbE LAN, two COM ports or two CAN ports, one OTG port and one MicroSD port. It also offers one reset button, one power button, one recovery switch and four SMA-type antenna openings. To meet the industrial and automatic requirements, the reliable edge AI system has a 12 or 24 VDC power input. Moreover, the AIE500-901-FL bundles with NVIDIA® JetPack 4.2.1 to help developers to jump-start their development environment for developing with the NVIDIA Jetson™ platform and minimize what they need to do to develop AI-related applications. It is an ideal Edge solution in AI inference, GPU computing, machine learning, image processing, the artificial intelligence of things and other extended fields.
Advanced Features:
- NVIDIA® Jetson™ TX2 with Pascal™, 256 CUDA cores GPU
- High performance edge AI computing performance for GPU-accelerated processing
- Ideal for intelligent edge applications, machine learning and computer vision
- One full-size PCI Express Mini Card slot and one SIM slot
- Supports M2. PCIe & SATA SSD and MicroSD slot
- Supports 2 USB 3.1 Gen 1 and 2 COM or 2 CAN
- Wide operating temperature range from -30°C to +60°C and vibration of up to 3Grms
- JetPack 4.2.1 support
