DURABOOK Z14i Volledig Robuuste Laptop

Levertijd:
Uit voorraad leverbaar
SKU
Z14i

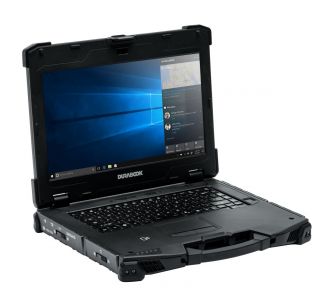

DURABOOK Z14i volledig robuuste laptop

● Intel® Quad Core™ i5-8250U 1.6 GHz
● 8GB DDR4 RAM uitbreidbaar tot 32 GB
● 14.0" Full HD optisch gebonden display
● 1000 Nits zonlicht afleesbaar DynaVue® display
( Night Vision support - NVIS Type I Class A Compliant)
● Fanless laptop
● Aanraakscherm (Regen / Handschoen / Stylus modi)
● Wireless LAN AC en Bluetooth 5.0
● Optioneel  met 4G / LTE WWAN en of GPS Module
● PC Card II sleuf
● 2 x RS232 poort
● 2 x RJ-45 (10/100/1000) Netwerk poort
● optionele uitbreidingsunit met 2 x PCIe sleuf
● MIL-STD810G en IP65 gecertificeerd

DURABOOK Z14i - FULLY RUGGED LAPTOP

As Strong As It Gets
Boundles
Customization.

Combined with the latest 8th Generation Intel® Core™ processor and graphics capabilities, the Z14I can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810G certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.





Z14i Mil-STD810G

Z14i Mil-STD461G

Z14i IP65 Certifiec

Z14i 6-foot drop survival

Z14i ANSI C1D2

Z14i Fanless laptop

3 years warranty

Z14i DynaVue, the best outdoor readable display

BUILT FOR ALL ENVIRONMENTS

With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810G certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

Z14i Mil-STD810G

Z14i Mil-STD810G

ENHANCED PERFORMANCE

Z14I is equipped with Intel® 8th generation CPU featuring UHD 620 graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0, all data can be instantly synchronized and fed back to the data center without any interruptions.

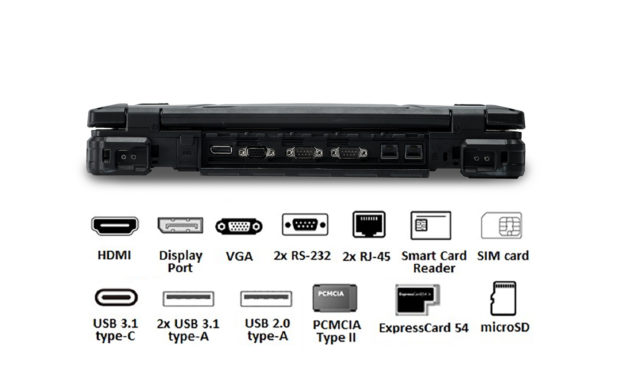

COMPREHENSIVELY CUSTOMIZED

A smart device that offers you different types of interfaces with various selections of add-ons, which includes two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 and PCMCIA Type II slots. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.1 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.

Durabook Z14i

Z14i Mil-STD810G

VIEWING AT ITS BEST

The FullHD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

OPTIMIZED TOUCH TECHNOLOGY

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

Z14i Mil-STD810G

Z14i Mil-STD810G

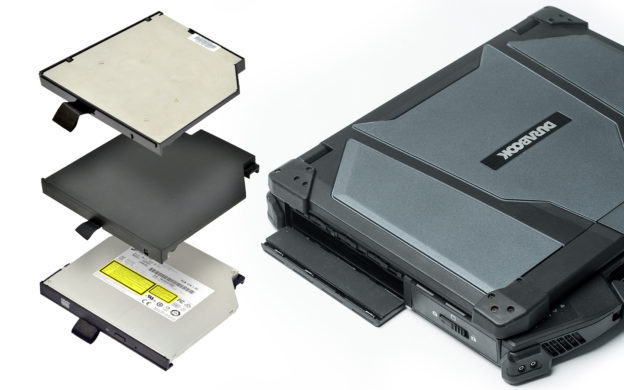

EASY SETUP

The Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a second SSD storage to select from.

POWERFUL EXPANSIONS

The expansion box is one of the most powerful enhancement capability of the Z14I. From a working station to a working server, the expansion box provides two slots of PCIe interface for various solution builds. It could also be field installed with simple and easy guideline to become a powerful working station.

Z14i Expansion

Z14I LAPTOP ANATOMY

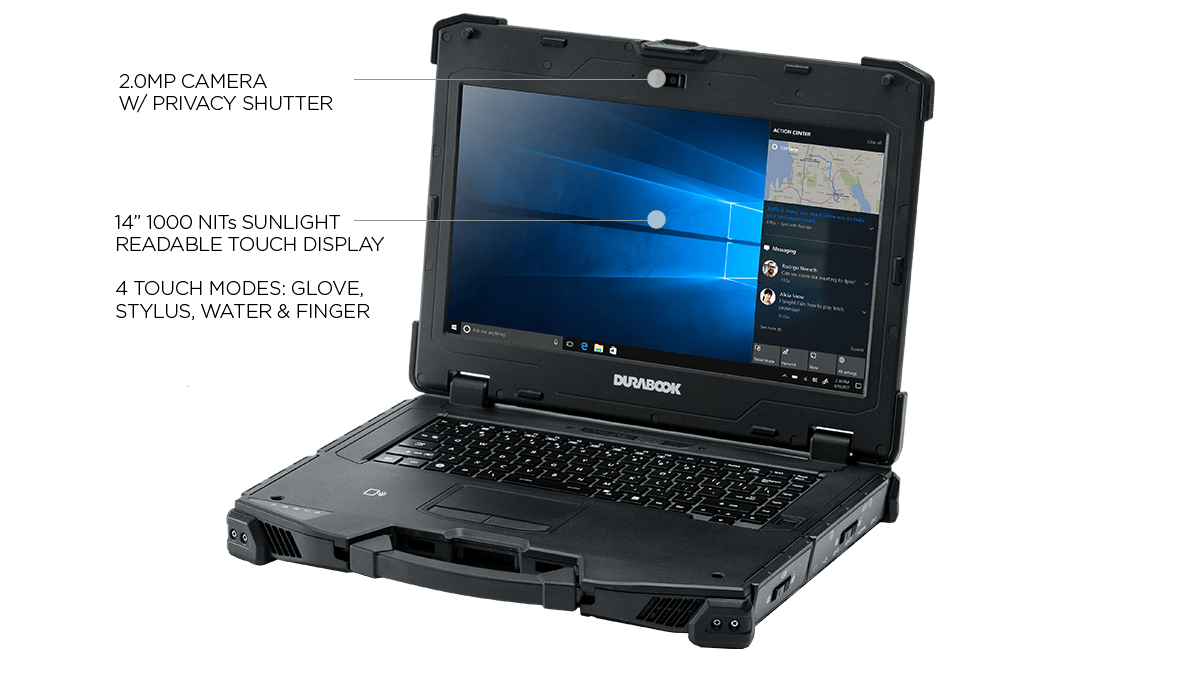

DURABOOK Z14i Front View

Durabook Z14i Front

DURABOOK Z14i Rear View

Durabook Z14i Rear

DURABOOK Z14i Left View

Durabook Z14i Left

DURABOOK Z14i Right View

Durabook Z14i Right




Download PDF
Meer informatie
Art.nr.
Z14i
Fabrikant
Durabook
Country of Manufacture
Taiwan
Operating System
Genuine Windows 10™ Professional
Rugged Features

MIL-STD-810G Certified
6′ drop 26 faces, Shock, Vibration,Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance
Electromagnetic
MIL-STD 461G
Water and Dust Resistant
IP 65 certified
Hazardous Environment
ANSI C1D2 12.12.01

CPU

Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor
with Turbo Boost Technology up to 4.2GHz, 8MB cache

Intel® Core™ i7-8550U (8th Gen) 1.8GHz processor
with Turbo Boost Technology up to 4.0GHz, 8MB cache

Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor
with Turbo Boost Technology up to 3.6GHz, 6MB cache

Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor
with Turbo Boost Technology up to 3.4GHz, 6MB cache

Memory
8 GB DDR4 (max 32GB DDR4)
Storage

256GB SSD
Optional 1TB HDD
Optional 512GB SSD
Optional OPAL 2.0 SSD or FIPS 140-2
Optional 2nd storage (SSD)1

VGA Controller

Intel UHD Graphics 620

Scherm

14.0” FHD (1920 x1080) with 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

X Bay
Integrated 2.0 MP web-cam with shutter design
Media Bay

Optional DVD super multi
Optional 2nd battery
Optional 2nd storage (SSD)1

Pointing Device

Capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Expansion Slots

Optional PCMCIA Slot x 2 (2nd PCMCIA instead of ExpressCard 54 x 1)

Memory Card Reader

Micro SD Card reader x 1

Smart Card Reader
Yes
I/O Ports

USB 3.1 (type A) x 2
USB 3.1 (type C) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ-45) x 2
VGA port (D-sub,15-pin) x 1
DP port x 1
HDMI port (type A) x 1
Serial port (RS-232 : D-sub, 9-pin) x 2
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
PCMCIA Type II x1
ExpressCard 54 x1 or PCMCIA Type II x1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Communication Interface
Integrated 10/100/1000 Ethernet Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Optional Dedicated GPS Module
Beveiliging

Intel® vProTM Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader default
Stealth mode
Night vision mode
Kensington lock
Optional fingerprint scanner
Optional RFID reader1

Power

AC adapter : 100-240V, 50Hz-60Hz, 90W
Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
Optional bridge battery : 5 minutes swap time3

Dimensions & Weight

356 mm (L) x 280 mm (W) x 50 mm (H)
3.6 kg4





1 Contact your sales representative for feature availability
2 Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
3 The system will stay operating within 300 seconds when user swaps the battery.
4 Weight varies with options.
