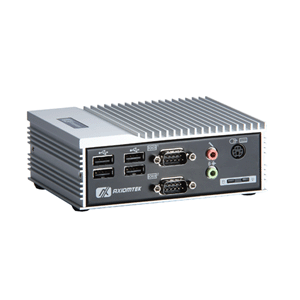

Axiomtek eBOX511-820-FL
Levertijd:
Uit voorraad leverbaar
SKU
eBOX511-820-FL
Fanless Embedded System with Intel® Atom™ Processor Z510/Z530 up to 1.6 GHz and Wide Range DC-in
● Supports Intel® Atom™ processor Z510 (1.1 GHz) or Z530 (1.6 GHz)
● Intel® US15W core logic chipset
● Ultra slim and power-efficient design
● Supports 4 USB 2.0 ports and 2 COM port
● Supports one 10/100/1000Mbps Ethernet port
● One CompactFlash™
● DC-in wide range
Axiomtek's eBOX511-820-FL fanless embedded box computer with an extremely-small form factor of 132 x 95.4 x 47.5 mm and a 10V to 30V wide-range DC power input is designed for rugged and space-critical industrial applications. The Axiomtek Embedded Computer eBOX511-820-FL is based on an ultra low-power Intel® Atom™ processor Z530 1.6GHz or Z510 1.1GHz with up to 2GB of DDR2 system memory. Powered by the Intel® System Controller Hub US15W with integrated Intel® GMA 500, the fanless embedded platform offers advanced graphics and 3D performance. Its power consumption is less than 10W in common used, making the Axiomtek Embedded Computer eBOX511-820-FL an optimal solution for power-sensitive embedded applications. The power-optimized Atom-based embedded computer is ideal for DSA, car PC, medical healthcare, entry-level gaming, and in-flight infotainment.
Meer informatie
Art.nr.
eBOX511-820-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel
CPU
Intel® Atom™ processor Z510 (1.1 GHz) or Z530 (1.6 GHz)
System Memory
1 x 200-pin DDR2 SODIMM max. up to 2 GB
Chipset
Intel® US15W core logic
BIOS
Phoenix-Award
System I/O Outlet
2 x RS-232 (COM 1/2)
1 x VGA
1 x Audio (Line-out/Mic-in)
1 x PS/2 keyboard/mouse
1 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x DC-inlet
1 x VGA
1 x Audio (Line-out/Mic-in)
1 x PS/2 keyboard/mouse
1 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x DC-inlet
Watchdog Timer
255 levels, 1 ~ 255 sec.
Expansion Interface
N/A
Storage
Supports 1 x CompactFlash™
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
1 x orange LED for HDD active
Power Supply
25W wide-range DC-in (10VDC ~ 30VDC)
Operating Temperature
0 °C ~ +50 °C (with W.T. CF)
Storage Temperature
-20 °C ~ +80 °C
Humidity
10%-90%, non-condensing
Grootte
132 x 95.4 x 47.5mm (W x H x D)
Weight (net/gross)
0.6 kg /1.2 kg
Certification
CE
EOS Support
XPE, CE, Linux
Warranty
2 Years
