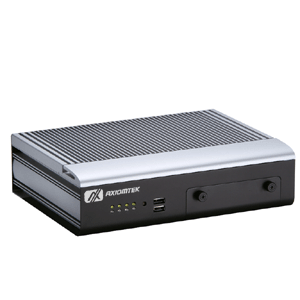

Axiomtek eBOX310-830-FL

Levertijd:
Uit voorraad leverbaar
SKU
eBOX310-830-FL

Fanless Embedded System with Intel® Core™2 Duo processor T5600 1.8Ghz for Vehicle PC

● Intel® Core™2 Duo T5600 1.8Ghz
● Intel® 945GME+ICH7M chipset
● ISO-7637 Pulse1/2a/3a/3b/4/5a vehicle standard
● Wide-range vehicle power supply with ignition control
● Fanless operation design with full feature I/O
● High performance DDR2 SODIMM max. up to 2 GB
● Supports 2 PCI Express Mini Cards
● One 2.5" SATA drive bay and CompanctFlash™ slot



The Axiomtek Embedded Computer eBOX310-830-FL compact in-vehicle box computer is for in-vehicle use. To further ensure its implementation for in-vehicle applications, the fanless Axiomtek Embedded Computer eBOX310-830-FL is certified with E-Mark Certification (E-13) and ISO-7637 power standard, which certifies it compatible with other vehicle components and meets tier-1 car maker's requirement.

In addition, the design of power module incorporates a MCU microprocessor for power control. The unit is powered by an Intel® Core™2 Duo processor with the Intel® 945GME and ICH7M chipsets. One 200-pin DIMM socket supports up to 2GB DDR2 400/533 DRAM for high memory bandwidth. The eBOX310-830-FL with anti-vibration up to 2Grms (with HDD) and excellent thermal resistance is an all-in-one in-vehicle computer for use in any car,truck, bus or even for maritime applications.

Meer informatie
Art.nr.
eBOX310-830-FL
Fabrikant
Axiomtek
Country of Manufacture
Taiwan
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel
CPU
Socket M for Intel® Core™2 Duo/Core™ Duo/Core™ Solo/ Celeron® M up to 2.33 GHz/ULV Celeron® (423)
System Memory
1 x 200-pin DDR2 SODIMM max. up to 2GB
Chipset
Intel® 945GME+ICH7M
BIOS
Phoenix-Award 4M Git with RPL/PXE boot ROM
System I/O Outlet
2 x RS-232 (COM 2/3)
1 x RS-232/422/485 (COM 1)
1 x DVI-I for DVI & CRT output
1 x Audio (Mic-in/Line-out)
1 x PS/2 keyboard/mouse
2 x 10/100/1000Mbps Ethernet
2 x USB 2.0
3 x SMA type connector opening
1 x VDC power input connector
Watchdog Timer
255 levels, 0~255 sec
Expansion Interface
2 x PCI Express Mini Card
Storage
Supports 1 x 2.5" SATA HDD drive bay
Supports 1 x CompactFlash™
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
1 x green LED for Power status
Power Supply
9 ~ 36VDC-in ISO-7637 standard support
Operating Temperature
0 °C ~ +50 °C (with W.T. HDD)
Storage Temperature
-20 °C ~ +80 °C
Humidity
10%-90%, non-condensing
Grootte
224.1 x 66.5 x 250.0mm (W x H x D)
Weight (net/gross)
3 kg /3.8 kg
Certification
CE
EOS Support
XPE, WinCE, Linux
Warranty
2 Years
