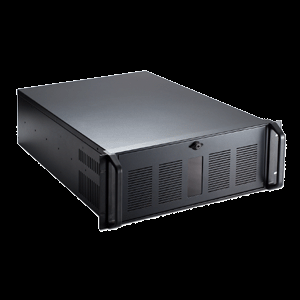

Axiomtek Rackmount Chassis AX61491
Levertijd:
2~4 Weken
SKU
AX61491
4U 14-slot Extended Rackmount Chassis
● Seven 5.25" and two 3.5" front accessible HDD drive bays
● Three 12 cm hot-swap ball-bearing fans
● Supports 14-slot backplane or ATX MB
● Hot-swap redundant or PS/2 power supply supported
The Axiomtek Rackmount Chassis AX61491 is a 4U-high rackmount industrial computer chassis which can hold a 14-slot PCI/ISA backplane and supports ATX Motherboard form factor. Three 12cm ball-bearing cooling fan maintains positive air circulation through the whole chassis. The front access I/O ports and drive bays are designed for ease access and maintenance. This industrial chassis features seven 5.25" and two 3.5" front accessible disk drive bays. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements. Furthermore, hot-swap redundant or PS/2 power supply is supported.
Meer informatie
Art.nr.
AX61491
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Black
Construction
Heavy-duty cold-rolled steel
Drive Capacity
Exposed 7 x 5.25" HDD drive bay and 2 x 3.5" HDD
drive bay
Cooling
3 x 12 cm hot-swap ball-bearing fans (88 CFM/each)
with a removable filter
Front Panel Indicators
1 x power on/off; 1 x power status; 3 x HDD
Front Panel Controls
1 x power on/off; 4 x system reset; 1 x alarm reset
Front Panel Connectors
2 x USB, 1 x PS/2 6-pin keyboard/mouse
Pre-punched Panel
N/A
Centralized Monitoring System
N/A
System Board
SBCs, ATX MB
Expansion Interface
14-slot backplane
Speaker
1 x 0.3W speaker
Operating Temperature Range
0°C ~ 40°C
Grootte
482.6 mm W) x 678.5 mm (D)
x 176.4 mm (H)
Weight (net/gross)
23 kg / 24.6 kg
