RS-485 I/O Expansion Unit
The I-7000/M-7000 modules provide cost-effective protection and conditioning for a wide range of valuable industrial control signals and system. Our product line includes sensor-to-computer, computer-to-sensor, digital I/O, timer/ counter, RS-232 to RS-485 converter, RS-485 repeater, man machine interface, data display and application software. The command set of I-7000/M-7000 modules is backward compatible to ADAM, Nudam, and 6B series of Analog Device. The M-7000 modules also support the industrial standard Modbus RTU protocol.
The tM series is a family of network data acquisition and control modules, providing digital I/O functions. The modules can be remotely controlled through an RS-485 serial bus by using DCON and Modbus RTU protocols. The selectable transmission speed of the RS-485 port is up to 115,200 bps. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the tM series perfect integration with the HMI, SCADA, PLC and other software systems.
The functionality of the tM series is the same as the M-7000 series. The tM series tiny RS-485 I/O modules support various I/O types, like photo-isolated digital input, relay contact, photoMOS relay, and open-collector output.
The tM series provides dual watchdog: module watchdog and host watchdog. The module watchdog is designed to automatically reset the microprocessor when the module hangs. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to predefined safe value state when the host fails.
For maximum space savings, the tM series is offered in an amazing tiny form-factor that makes it can be easily installed in anywhere, even directly embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring.
The tM series provides dual watchdog: module watchdog and host watchdog. The module watchdog is designed to automatically reset the microprocessor when the module hangs. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to predefined safe value state when the host fails.
For maximum space savings, the tM series is offered in an amazing tiny form-factor that makes it can be easily installed in anywhere, even directly embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring.
4 artikel(en)
per pagina
-

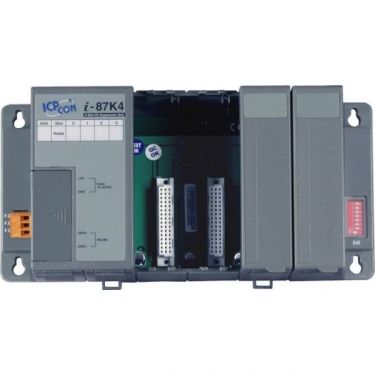

ICPDAS I-87K4
RS-485 I/O Expansion Unit with 4 I/O slots
● COM2
● RS-485, 115.2K BPS max.
● Data+, Data-
● 16550 compatible, 16 bytes FIFO
● Directly drive 256 of 7000 modules
● Max. Distance: 1.2 km
● Isolation voltage: 3000VDC -

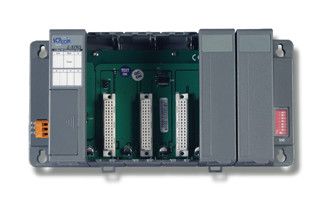

ICPDAS I-87K5
RS-485 I/O Expansion Unit with 5 I/O slots
● COM2
● RS-485, 115.2K BPS max.
● Data+, Data-
● 16550 compatible, 16 bytes FIFO
● Directly drive 256 of 7000 modules
● Max. Distance: 1.2 km
● Isolation voltage: 3000VDC -

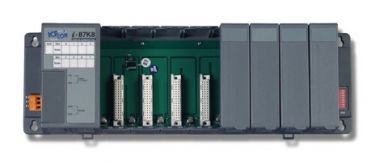

ICPDAS I-87K8
RS-485 I/O Expansion Unit with 8 I/O slots
● COM2
● RS-485, 115.2K BPS max.
● Data+, Data-
● 16550 compatible, 16 bytes FIFO
● Directly drive 256 of 7000 modules
● Max. Distance: 1.2 km
● Isolation voltage: 3000V DC -

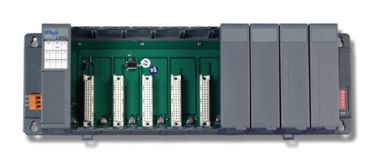

ICPDAS I-87K9
RS-485 I/O Expansion Unit with 9 I/O slots
● COM2
● RS-485, 115.2K BPS max.
● Data+, Data-
● 16550 compatible, 16 bytes FIFO
● Directly drive 256 of 7000 modules
● Max. Distance: 1.2 km
● Isolation voltage: 3000VDC
