Remote I/O Expansion Units

RU-87Pn series is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the RS-485 for industrial monitoring and controlling applications. The unit supports more than 30 I/O modules including analog input/output, digital input/output, counter/frequency I/O modules.
RU-87Pn is designed to operate in harsh and noisy environment, so the hardware is manufactured with wide power input range (10~30VDC),isolated power and operating temperature (-25℃ ~ +75℃). It simplifies installation and maintenance of I/O modules with hot swappable and auto configuration, fault and error detection, dual watchdog, programmable power on and safe values.
Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the RU-87Pn can be easily integrated into variant software system.

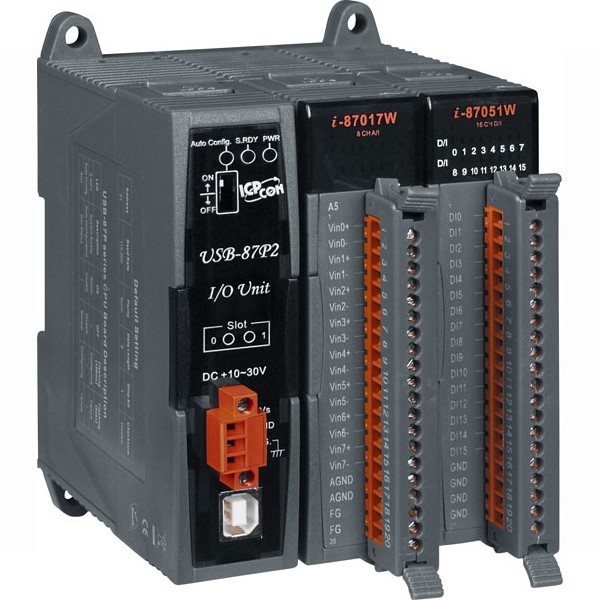

USB-87Pn series is an intelligent I/O expansion unit with convenient USB interface, that used to expand I-87K series I/O modules for industrial monitoring and controlling applications. The unit supports more than 30 I/O modules including analog input/output, digital input/output, counter/frequency I/O modules.
USB-87Pn is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10~30VDC) and operating temperature (-25℃ ~ +75℃). It simplifies installation and maintenance of I/O modules with hot swappable and auto configuration, fault and error detection, dual watchdog, programmable power on and safe values.
Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.

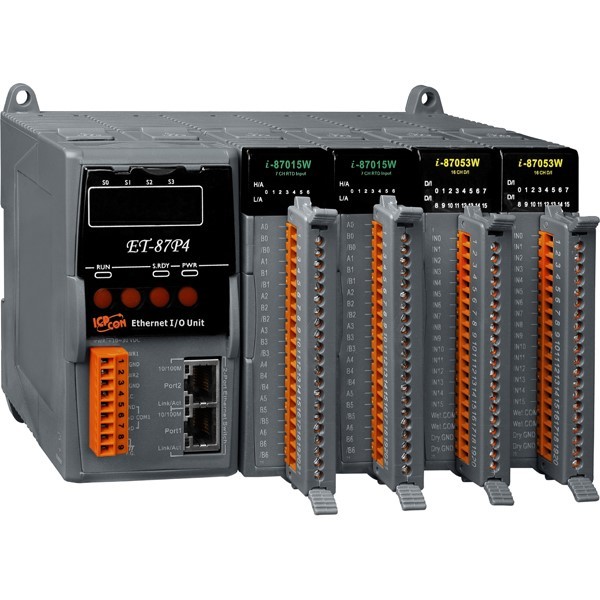

ET-87Pn series is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. The unit supports more than 30 I/O modules including analog input/output, digital input/output, counter/frequency I/O modules.
ET-87Pn is designed to operate in harsh and noisy environment, so the hardware is manufactured with wide power input range (10~30VDC),isolated power and operating temperature (-25℃ ~ +75℃). It simplifies installation and maintenance of I/O modules with hot swappable and auto configuration, fault and error detection, dual watchdog, programmable power on and safe values.
Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the ET-87Pn can be easily integrated into variant software system.

I-8K series I/O Modules

The parallel modules (I-8K Series) are high-speed modules and support MCU (Main Control Unit) only....
I-87K series I/O Modules

The serial modules (I-87K Series) can support either MCU or I/O expansion unit. ...
Intelligent RS-485 I/O Expansion Units

The unit is used to expand I-87K series I/O modules via the RS-485 interface. It is equipped one power module, one RS-485 interface, one CPU module and several I/O slots. Only high profile I-87K serie...

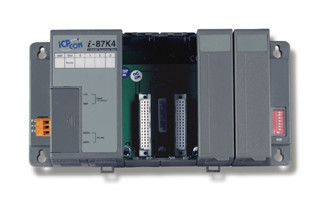

RS-485 I/O Expansion Unit

The I-7000/M-7000 modules provide cost-effective protection and conditioning for a wide range of valuable industrial control signals and system. Our product line includes sensor-to-computer, com...
Intelligent USB I/O Expansion Units

The unit is used to expand I-87K series I/O modules via the USB interface. It is equipped one power module, one USB interface, one CPU module and several I/O slots. The most important features are: ...
Intelligent Ethernet I/O Expansion Units

The unit is used to expand I-87K series I/O modules via the RS-485 interface. It is equipped one power module, one RS-485 interface, one CPU module and several I/O slots. Only high profile I-87K serie...
CAN Bus Remote I/O

CANopen is a CAN-based application layer protocol. It was developed as a standardized embedded network with highly flexible configuration capabilities. CANopen was designed for motion-oriented machine...

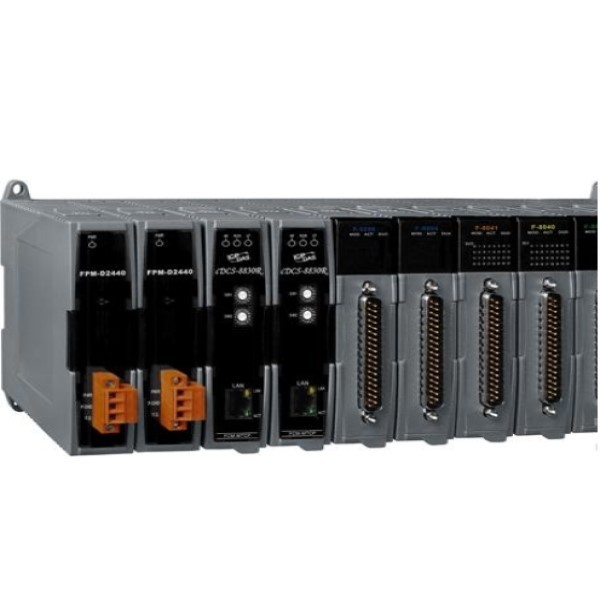

Intelligent Remote Redundant Ethernet I/O expansion units

The iDCS-8830 remote redundant IO unit is available in a dual redundant configuration with Modbus TCP protocol. This consists of two communication processors installed in the same backplane. In additi...
