Screw Terminal Boards
ICPDAS series modules are the most cost-efficient, field configurable isolation-based signal conditioners on the market today. These modules are easily installed to protect your instruments and process signals from the harmful effects of ground loop, motor noise, and other electrical interference.
-
ICPDAS DB-32R
32-channel Relay Output Board
● Form A Signal Relay
● The DB-32R accepts 37-pin connectors to control 32 form A relays for use with PISO-C64 and ISO-C64
● The DB-16P16R accepts 37-pin connectors to control 16 form A relays and 16-channle input terminal for use with PISO-P32C32 and ISO-P32C32
● Each LED is displayed when the corresponding relay is activated Screw terminals for field wiring -

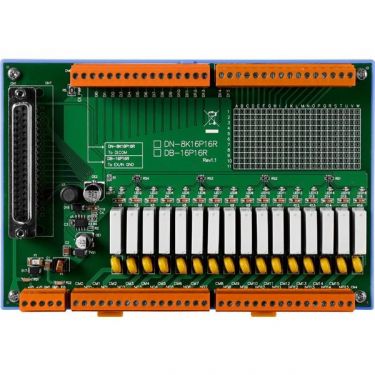

ICPDAS DB-16P16R
16-channel Input Terminal and 16-channel Relay Output Board
● Form A Signal Relay
● The DB-32R accepts 37-pin connectors to control 32 form A relays for use with PISO-C64 and ISO-C64
● The DB-16P16R accepts 37-pin connectors to control 16 form A relays and 16-channle input terminal for use with PISO-P32C32 and ISO-P32C32
● Each LED is displayed when the corresponding relay is activated Screw terminals for field wiring -
ICPDAS DN-8K32R
32-channel Relay Output Board
● Form A Signal Relay
● The DN-8K32R accepts 37-pin connectors to control 32 form A relays for use with I-8041 and I-87041
● Each LED is displayed when the corresponding relay is activated
● Screw terminals for field wiring
● Power input range from +12 to +30V DC
● Supports operating temperatures from -25 °C ~ +75 °C
● DIN-Rail mounting for industrial usage -

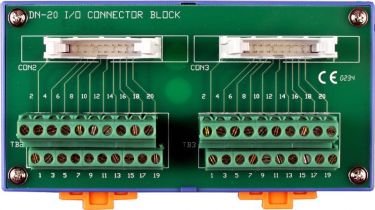

ICPDAS ADP-20
20-pin Connector Extender
● Extends dual 20-pin flat cable
● Compatible to 780 series daughter board
● Dimensions: 114 x 102 mm -
ICPDAS ADP-37
50-pin Connector Extender to 37-pin Connector
● Converts 50-pin Opto-22 to female DB-37 connector
● Compatible to 780 series daughter board
● Dimensions: 114 x 102 mm -

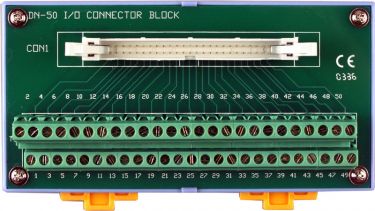

ICPDAS ADP-50
50-pin Connector Extender
● Extends one 50-pin flat cable
● Compatible to 780 series daughter board
● Dimensions: 114 x 102 mm -
ICPDAS DB-1825
Daughter Board for PCI-1802 with 1 meter D-sub 37-pin cable
● Screw terminal board using 37 pin cable I/O ports for PCI-1202/1602/1802/822/826 series , (32 channel single-ended ,16 channel differential)
● Blank pads for break detection, Low-pass filter , current shut and voltage divider (manual soldering)
● Dimensions: 170 x 114mm -
ICPDAS DB-8025
Screw Terminal Board with Two 20-pin Flat-cable
● Screw terminal board using two 20 pin cable connector
● Compatible to 780 series daughter board
● Dimensions :114 x 102mm -
ICPDAS DB-8125
Screw Terminal Board with 1M D-sub 37-pin Cable
● Screw terminal board using two 20 pin cable connector or One 37-pin D-sub connector
● Dimensions: 221 x 115mm -
ICPDAS DB-8225
Daughter Board for A-82x Series, PCI-1800 with 1 M D-sub 37-pin Cable
● Screw terminal board using 37 pin cable I/O ports for A-82X series, PCI-1800 series. (16 channel single-ended or 8 channel differential)
● Lank pads for break detection , low-pass filter , current shut and voltage attenuation
● On board cold junction circuit in analog input channel 1 (jumper selectable single-ended , differential mode)
● Dimensions:170 x 114mm -
ICPDAS DB-8325
Daughter Board for A-82x Series, PCI-1800 with 1 M D-sub 37-pin Cable
● Screw terminal board using 37 pin cable I/O ports for A-82X series, PCI-1800 series. (16 channel single-ended or 8 channel differential)
● Lank pads for break detection , low-pass filter , current shut and voltage attenuation
● On board cold junction circuit in analog input channel 1 (jumper selectable single-ended , differential mode)
● Dimensions:170 x 114mm -

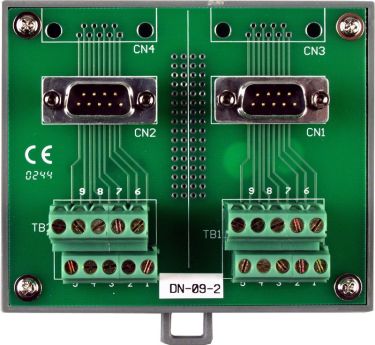

ICPDAS DB-8425
Screw Terminal Board for PISO-DA2 with 1.5 Meter D-sub 9-pin Cable
● Connector interface for PISO-DA2
● Screw terminals for easy field wiring
● 9-pin D-sub connector pin to pin screw terminal for PISO-DA2 -

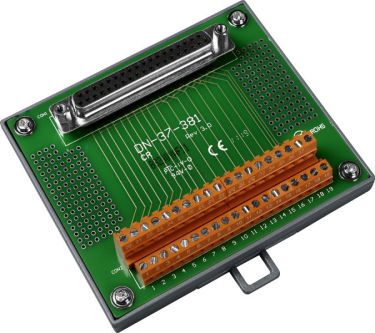

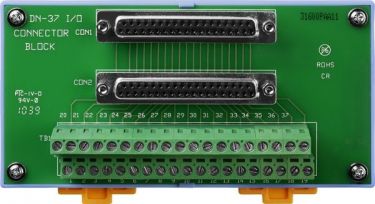

ICPDAS DB-37
Direct Connection Board
● 37 pin D-sub connector pin to pin screw terminal for any 37 pin D-sub connector of I/O board
● Dimensions:130 x 78mm -
ICPDAS DB-16P
16-channel Bi-direction Isolated Input Board
● 16 optically isolated digital input channels Connects directly to A-82X board or any 812pg, 711, series board or 720, 726 series board and PCI Bus Multi-function Board
● 1 AC/DC signal Input
● 1 AC signal input with filter
● 1 Input buffer with voltage compactors -
ICPDAS DB-16R
16-channel Relay Output Board
● Form C relays
● Accept 20-pin connector to control 16 form c relays for use with A-82X , DIO-64 digital output port or any compatible digital output port
● Each LED light when corresponding relay is activated
● Screw terminals for field wiring -
ICPDAS DB-24R
24-channel Relay Output Board
● 24 Form C Relays (SPDT)
● SPST: Single Pole Double Throe
● OPTO-22 Compatible Connector
● Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● Switch up to 0.5A at 120V AC
● Switch up to 1A at 24V DC
● On board relay driver circuits
● LED’s indicated relay status
● Screw terminals for easy field wiring -
ICPDAS DB-24RD
24-channel Relay Output Board
● 24 Form C Relays (SPDT)
● SPST: Single Pole Double Throe
● OPTO-22 Compatible Connector
● Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● Switch up to 0.5A at 120V AC
● Switch up to 1A at 24V DC
● On board relay driver circuits
● LED’s indicated relay status
● Screw terminals for easy field wiring -

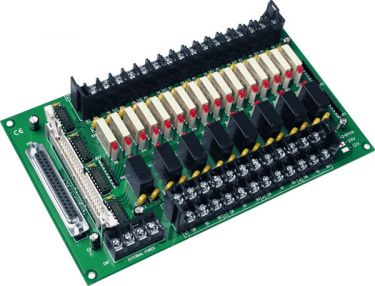

ICPDAS DB-24PR
24-channel Power Relay Output Board
● 8 Form C Relays (SPDT) and 16 FORM A Relay
● Accept 20-pin connector to control 8 Form and 8 Form A relays
● Switch up to 5A at 250 VAC / 5A at 30VDC
● LEDs indicated relay status
● Designed varistor to protect each channel’s high voltage spike
● Screw terminals for easy field wiring
● 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● 20-Pin header connects directly to A-82X, A-626, A-628, DIO-64 -
ICPDAS DB-24P
24-channel OPTO-22 compatible Opto-isolated Input Board
● Optically isolated digital input channels
● Connects directly to DIO24, DIO48, DIO144 OPTO-22 compatible digital input card or any 722, 724 OPTO-22 compatible digital input board
● AC/DC Signal Input
● AC Signal Input with filter
● Input buffer with voltage comparators
● Isolated digital input sensing -
ICPDAS DB-24PD
24-channel Opto-isolated Input Board
● Optically isolated digital input channels
● Connects directly to DIO24, DIO48, DIO144 OPTO-22 compatible digital input card or any 722, 724 OPTO-22 compatible digital input board
● AC/DC Signal Input
● AC Signal Input with filter
● Input buffer with voltage comparators
● Isolated digital input sensing
