WISE Web-based PAC
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive HMI interface that allows users to implement control logic on controllers just a few clicks away; no programming is required. With this powerful and easy-to-use software, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
18 artikel(en)
per pagina
-

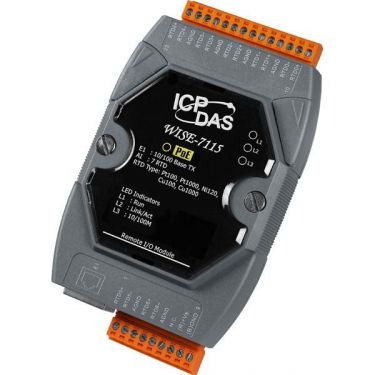

ICPDAS WISE-7115
7-channel RTD Input with 3-wire RTD lead resistance elimination PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● AI Type: 7 RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000)
● Individual Channel Configuration
● 3-wire RTD Input with Lead Resistance Elimination
● 2-way Isolation/ESD Protection -

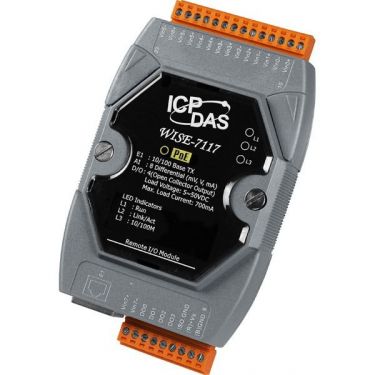

ICPDAS WISE-7117
8-channel Analog Input with High Voltage Protection and 4-channel Isolated Output PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● AI Type: 8 Differential (mV, V, mA)
● DO Type: 4 Open Collector Outputs
● Overvoltage Protection is up to 240 Vrms
● 2-way Isolation/ESD protection -

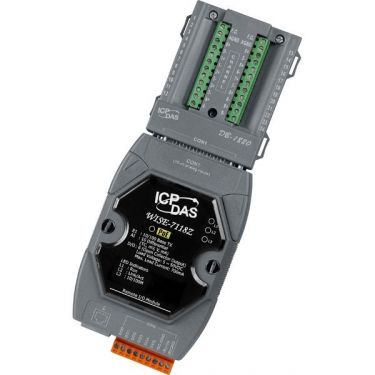

ICPDAS WISE-7118Z
10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Output PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support Current Input, Voltage Input and Thermocouple Input
● Overvoltage Protection is up to 240 Vrms
● 6-channel Digital Outputs
● 2-way Isolation/ESD Protection -
ICPDAS WISE-7119
8-channel Analog Input with High Voltage Protection and 4-channel Isolated Output PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support Current Input, Voltage Input and Thermocouple Input
● Overvoltage Protection is up to 240 Vrms
● 4-channel Digital Outputs
● 2-way Isolation/ESD Protection -
ICPDAS WISE-7126
6-channel Analog Inputs, 2-channel Analog Outputs, 2-channel Digital Inputs And 2-channel Digital Outputs PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● AI: 6 (mV, V, mA)
● AO: 2 (V, mA)
● DO: 2 (Open Collector Output)
● DI: 2 (Dry+Wet) -
ICPDAS WISE-7144
8-channel Isolated Sink Type Open Collector Output and 8-channel Isolated Digital Input PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● 2-way Isolation/ESD Protection
● DO Type: 8 Isolation Open Collector (Sink Type)
● DI Type: 8 Isolation Wet Contact (Sink/Source) -

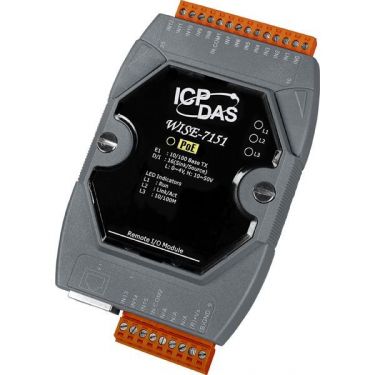

ICPDAS WISE-7151
16-channel Isolation Digital Input PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● 2-way Isolation/ESD Protection
● DI Type: 16 Wet Contact (Sink, Source) -

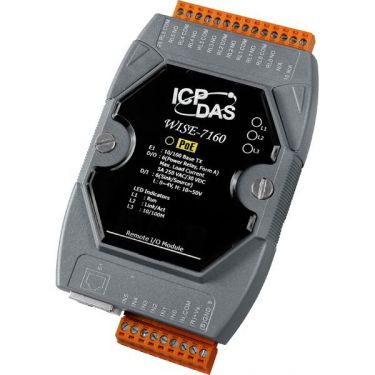

ICPDAS WISE-7160
6-channel Power Relay Output and 6-channel Isolation Digital Input PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● 2-way Isolation/ESD Protection
● DO Type: 6 Power Relay (Form A)
● DI Type: 6 Wet Contact (Sink, Source) -

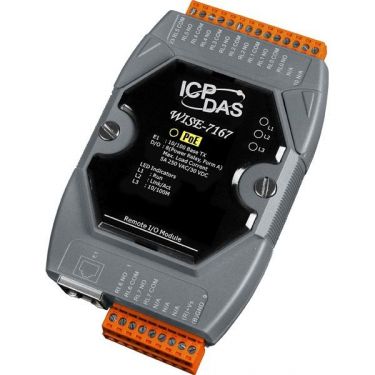

ICPDAS WISE-7167
8-Channel Power Relay Output PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● 2-way Isolation/ESD Protection
● DO Type: 8 Power Relay (Form A) -
ICPDAS WISE-7901
User-defined I/O Expansion PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● I/O expansion bus
● Support DI/DO X-Boards: X107, X109, X110, X111
● Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324 -
ICPDAS WISE-7901D
User-defined I/O Expansion PoE Module with LED display
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● I/O expansion bus
● Support DI/DO X-Boards: X107, X109, X110, X111
● Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324 -
ICPDAS WISE-4000
3-channel Digital Input, 3-channel Digital Output, and 8-channel Analog Input GPRS Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support GPRS/GSM: Quad-band 850/900/1800/1900 MHz
● I/O: 3 channels DI, 3 channels DO, 8 channels AI
● Support SD storage card -
ICPDAS WISE-4000D
3-channel Digital Input, 3-channel Digital Output, and 8-channel Analog Input GPRS Module with LED display
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support GPRS/GSM: Quad-band 850/900/1800/1900 MHz
● I/O: 3 channels DI, 3 channels DO, 8 channels AI
● Support SD storage card
● 128x64 dots LCM display -

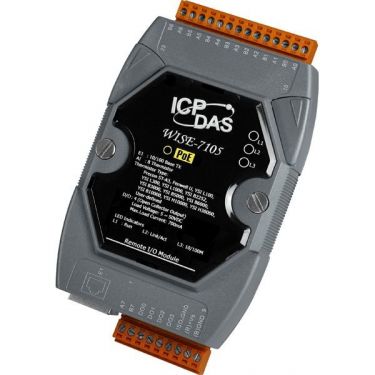

ICPDAS WISE-7105
8-channel Thermistor Input and 4-channel Isolated Digital Output PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support Thermistor Input
● Individual Channel Configuration
● 4-channel Digital Outputs
● 2-way Isolation/ESD Protection -
ICPDAS WISE-7902
FRnet Remote I/O PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support FRnet Modules: FR-2053T, FR-2054T, FR-2057T -
ICPDAS WISE-7902D
FRnet Remote I/O PoE Module with LED Display
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● Support FRnet Modules: FR-2053T, FR-2054T, FR-2057T -

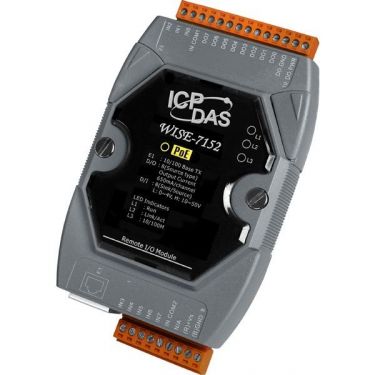

ICPDAS WISE-7152
8-channel Isolated Source Type Open Collector Output and 8-channel Isolated Digital Input PoE Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● No more programming. Just click and get done!
● Support IO, Counter, Timer, Email operations
● Modbus/TCP Protocol for SCADA Software Seamless Integration
● IEEE 802.3af-compliant Power over Ethernet (PoE)
● 10/100 Base-TX Ethernet
● 2-way Isolation/ESD Protection
● DO Type: 8 Isolation Open Collector (Sink Type)
● DI Type: 8 Isolation Wet Contact (Sink/Source) -

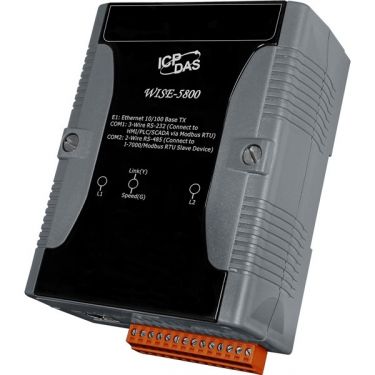

ICPDAS WISE-5800
User-defined I/O & Data Logger Module
● Built-in Web Server for IF-THEN-ELSE rule setting
● Built-in IF-THEN-ELSE rule enigne for logic operation
● Support IO, Counter, Timer, Schedule, Email, Recipe operations
● No more programming. Just click and get done!
● Data logger and data files send back function supported
● Modbus TCP Protocol for SCADA Software Seamless Integration
● 10/100 Base-TX Ethernet
● Support XW-Board
● Support I-7000 Remote I/O Modules (Up to 16)
● SNTP Time Synchronization Supported
