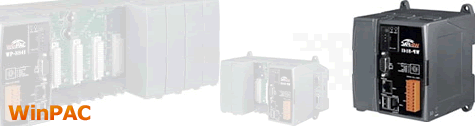

WinPAC

Winpac

WinPAC-8000 is the second generation PAC of ICP DAS. It equips a PXA270 CPU (520MHz) running a Windows CE.NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).

Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.Net 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC …etc.

Compared to the first generation WinCon-8000, it not only improves the CPU performance (from 206 MHz to 520 MHz) and upgrading OS (from CE 4.1 to CE 5.0), but also adds many reliability features, such as dual LAN, redundant power input, dual battery backup SRAM, etc. It gives you all of the best features of both traditional PLCs and Windows capable PCs

ICPDAS WP-8131

Standard WinPAC-8000 with 1 I/O slot

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mountable
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8141

Standard WinPAC-8000 with 1 I/O slot

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8431

Standard WinPAC-8000 with 4 I/O slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8441

Standard WinPAC-8000 with 4 I/O slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8831

Standard WinPAC-8000 with 8 I/O slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mountable
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8841

Standard WinPAC-8000 with 8 I/O slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Powerful CPU Module
● Built-in VGA Port (800x600, 640x480)
● 64-bit Hardware Serial Number for Software Protection
● Rich I/O Expansion Ability
● I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
● Built-in Flash Disk (31 MB)
● Dual Watchdog Timers
● Dual Battery Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8051

Standard WinPAC-8000 without I/O Slot

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability (For High Profile I-87 K Modules Only)
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C
ICPDAS WP-8351

Standard WinPAC-8000 with 3 I/O Slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability (For High Profile I-87 K Modules Only)
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C
ICPDAS WP-8751

Standard WinPAC-8000 with 7 I/O Slots

SOFTWARE FEATURES:

● Windows CE.Net 5.0
● Remote Maintenance via FTP Server and VCEP Software
● Built-In OPC Server (NAPOPC_CE5)
● Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
● Upgrading applications from WinCon to WinPAC Just Copy and Play

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability (For High Profile I-87 K Modules Only)
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8137

1 slot Ethernet WinCE 5.0 Based ISaGRAF PAC (Resolution: 1024x768 max.)

● eLogger HMI Application
● Modbus TCP/IP Master
● ZigBee Wireless Solution
● GPS Applications: ISaGRAF PAC plus I-87211W or GPS-721
● Stress Monitoring Application of Constructions
● Integrate with CAN/CANopen Devices and Sensors
● Send Email with One Attached File
● Data Acquisition and Auto-Report System
● Advantage: Every WinPAC in the different location doesn't require a fixed Internet IP
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Remote I/O Modules
● FRnet I/O
● New Redundant System with Ethernet I/O
● New Hot-Swap and Redundant System
● Web HMI
● SMS: Short Message Service
● Motion Control
● Data Log
● Communicate with Other TCP/IP Server Devices or UDP Devices

Offerte aanvragen
ICPDAS WP-8147

1 slot Ethernet WinCE 5.0 Based ISaGRAF PAC (Resolution: 800x600 max.)

● eLogger HMI Application
● Modbus TCP/IP Master
● ZigBee Wireless Solution
● GPS Applications: ISaGRAF PAC plus I-87211W or GPS-721
● Stress Monitoring Application of Constructions
● Integrate with CAN/CANopen Devices and Sensors
● Send Email with One Attached File
● Data Acquisition and Auto-Report System
● Advantage: Every WinPAC in the different location doesn't require a fixed Internet IP
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Remote I/O Modules
● FRnet I/O
● New Redundant System with Ethernet I/O
● New Hot-Swap and Redundant System
● Web HMI
● SMS: Short Message Service
● Motion Control
● Data Log
● Communicate with Other TCP/IP Server Devices or UDP Devices

Offerte aanvragen
ICPDAS WP-8437

4 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (Resolution: 1024x768 max.)

● eLogger HMI Application
● Modbus TCP/IP Master
● ZigBee Wireless Solution
● GPS Applications: ISaGRAF PAC plus I-87211W or GPS-721
● Stress Monitoring Application of Constructions
● Integrate with CAN/CANopen Devices and Sensors
● Send Email with One Attached File
● Data Acquisition and Auto-Report System
● Advantage: Every WinPAC in the different location doesn't require a fixed Internet IP
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Remote I/O Modules
● FRnet I/O
● New Redundant System with Ethernet I/O
● New Hot-Swap and Redundant System
● Web HMI
● SMS: Short Message Service
● Motion Control
● Data Log
● Communicate with Other TCP/IP Server Devices or UDP Devices

Offerte aanvragen
ICPDAS WP-8447

4 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (Resolution: 800x600 max.)

● eLogger HMI Application
● Modbus TCP/IP Master
● ZigBee Wireless Solution
● GPS Applications: ISaGRAF PAC plus I-87211W or GPS-721
● Stress Monitoring Application of Constructions
● Integrate with CAN/CANopen Devices and Sensors
● Send Email with One Attached File
● Data Acquisition and Auto-Report System
● Advantage: Every WinPAC in the different location doesn't require a fixed Internet IP
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Remote I/O Modules
● FRnet I/O
● New Redundant System with Ethernet I/O
● New Hot-Swap and Redundant System
● Web HMI
● SMS: Short Message Service
● Motion Control
● Data Log
● Communicate with Other TCP/IP Server Devices or UDP Devices

Offerte aanvragen
ICPDAS WP-8139

InduSoft based WinPAC-8000 with 1 I/O slots

SOFTWARE FEATURES:
● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:
● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8149

InduSoft based WinPAC-8000 with 1 I/O slots

SOFTWARE FEATURES:

● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8439

InduSoft based WinPAC-8000 with 4 I/O slots

SOFTWARE FEATURES:
● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:
● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8449

InduSoft based WinPAC-8000 with 4 I/O slots

SOFTWARE FEATURES:

● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8839

InduSoft based WinPAC-8000 with 8 I/O slots

SOFTWARE FEATURES:
● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:
● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8849

InduSoft based WinPAC-8000 with 8 I/O slots

SOFTWARE FEATURES:

● InduSoft Web Studio General Features
● InduSoft Integrated with WinPAC-8000
● Communication Protocol
● Access Database Easily
● Web Thin Clients
● Useful Package Tool is Provided

HARDWARE FEATURES:

● Built-in VGA Port
● I/O Module Hot Swap Ability
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Ports
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS WP-8136

InduSoft and ISaGRAF based WinPAC-8000 with 1 I/O slot

WinPAC-8000 Software Features

● Windows CE.NET 5.0
● Remote Maintenance via FTP Server and VCEP software
● Built-in OPC Server (Quicker)
● Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)
● Upgrading applications from WinCon-8000 to WinPAC-8000 just Copy and Play

WinPAC-8000 Hardware Features

● Built-in VGA Port
● I/O module HotSwap Ability (only for high profile I-87K modules)
● Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
● Built-in Flash Disk (96 MB)
● Dual Watchdog Timer, Battery-Backup (512KB), and Ethernet Port
● Redundant Power Input

Offerte aanvragen
