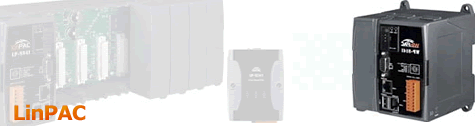

LinPAC

The LinPAC-5000 is the latest generation Linux-based PAC from ICP DAS. It's an embedded system controller which is dedicated to industrial control.

The LinPAC-5000 family is a palm-size PAC (Programmable Automation Controller) and is designed to provide fast, convenient, flexible and simplified solutions for industrial and embedded applications. It is equipped with a PXA270 CPU (520 MHz) running a Linux kernel 2.6.19 operating system, multiple communication interfaces (VGA, USB, Ethernet, RS-232/485 and audio ports) and powerful software including development tools.

The LinPAC-5000 provides the ability to add an I/O expansion bus allowing users implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, and various communication interfaces (RS-232/422/485), etc. Customers can choose functions which they would like to combine, and then optimize the performance of the LinPAC-5000 for every different situation.

Nowadays, Linux has been adopted widely by many users because of the properties of stability, open source, and free of charge. In the mean while, owing to the great supports from more and more companies and the mature development, Linux is now becoming one of the most popular OS on the market. Furthermore the hardware requirements of Linux OS in embedded system is not high, just only 386 CPU or better and 8 MB RAM. Therefore, besides Win CE of Microsoft, Linux has been already become another good choice in embedded OS.

The LinPAC-8000 is a second generation Linux-based PAC from ICP DAS and is equipped with a powerful CPU module running a Linux kernel 2.6 operating system, various communication interfaces (VGA, USB, Ethernet and RS-232/485) and slots for both high performance parallel bus type (high profile I-8K series) and serial bus type (high profile I-87K series) I/O modules.

Compared with the first generation LinCon-8000, not only is the CPU performance improved have been added (from 206 MHz to 520 or 500 MHz) and upgraded OS from Linux kernel 2.4 to Linux kernel 2.6, but many reliability features, such as dual LAN, redundant power input, and dual battery backup SRAM, etc., making the LinPAC-8000 one of the most powerful systems available.

ICPDAS LP-5131

Standard LinPAC-5000 with 800x600 VGA port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 800 × 600 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C~ +75 °C

Offerte aanvragen
ICPDAS LP-5231

Standard LinPAC-5000 with 1024x768 VGA port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 1024 × 768 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5331

Standard LinPAC-5000 with audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in Audio with Microphone-In and Earphone-Out
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5431

Standard LinPAC-5000 with 800x600 VGA port and audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 800x600 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5531

Standard LinPAC-5000 with 1024x768 VGA port and audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 1024x768 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C
ICPDAS LP-5141

Standard LinPAC-5000 with 800x600 VGA port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 800 × 600 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C~ +75 °C

Offerte aanvragen
ICPDAS LP-5241

Standard LinPAC-5000 with 1024x768 VGA port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 1024 × 768 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5341

Standard LinPAC-5000 with audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in Audio with Microphone-In and Earphone-Out
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5441

Standard LinPAC-5000 with 800x600 VGA port and audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 800x600 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-5541

Standard LinPAC-5000 with 1024x768 VGA port and audio port

● Linux kernel 2.6.19 Inside
● Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
● Power PXA270 CPU: 32-bit & 520 MHz
● 64 MB Flash, 128 MB SDRAM
● Built-in Ethernet, USB, RS-232, RS-485 Ports
● Built-in 1024x768 VGA Port
● I/O Expansion Board Optional
● Operating Temperature: -25 °C ~ +75 °C

Offerte aanvragen
ICPDAS LP-8131

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x
ICPDAS LP-8431

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x
ICPDAS LP-8831

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x
ICPDAS LP-8141

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x

Offerte aanvragen
ICPDAS LP-8441

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x

Offerte aanvragen
ICPDAS LP-8841

Standard LinPAC-8000 with 8 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Ftp Server, SSH Server, UPnP
● Supported Communication: Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561,7563
● Security: Unique Serial Number
● Java: JVM, JIOD (Java I/O Driver)
● Interpreter: Perl, PHP
● Database: MySQL
● GUI: GTK + Library
● Other: USB WebCam, RAM Disk, OEM LinPAC Boot Logo.
● Resolution: 1024x768, 800x600, 640x480 for LP-8x3x, 800x600 for LP-8x4x

Offerte aanvragen
ICPDAS LP-8081

Standard LinPAC-8000 with 0 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Telnet Server, SSH Server
● Security: Unique Serial Number
● Interpreter: Perl, PHP
● GUI: GTK + Library
● Dual Watchdog Timer
● Built-In Flash Disk (4 GB)
● Dual Battery-Backup SRAM (512 KB)
● There is one resolution mode supported in the LinPAC

Offerte aanvragen
ICPDAS LP-8381

Standard LinPAC-8000 with 3 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server,Telnet Server, SSH Server
● Security: Unique Serial Number
● Interpreter: Perl, PHP
● GUI: GTK + Library
● Dual Watchdog Timer
● Built-In Flash Disk (4 GB)
● Dual Battery-Backup SRAM (512 KB)
● There is one resolution mode supported in the LinPAC

Offerte aanvragen
ICPDAS LP-8781

Standard LinPAC-8000 with 7 I/O slots

● Development Environment: LinPAC SDK
● Built-in Server: Web Server, Telnet Server, SSH Server
● Security: Unique Serial Number
● Interpreter: Perl, PHP
● GUI: GTK + Library
● Dual Watchdog Timer
● Built-In Flash Disk (4 GB)
● Dual Battery-Backup SRAM (512 KB)
● There is one resolution mode supported in the LinPAC

Offerte aanvragen
