iPAC
The iPAC-8000 is a new family of compact, modular, intelligent and rugged, distributed I/O (input/output) systems, designed for data acquisition and control in manufacturing, research and education.
This new exciting series offers a flexible, versatile, and economical solution to a wide range of applications. From Data-Acquisition, process control, test and measurement, to energy and building management.
The iPAC-8000 is a modular network based system with the capability of connecting I/O either through it's own local bus or alternatively through I/O expansion or network extension.
The unit comprises a main control unit with a range of standard communication interfaces, and an I/O bus permitting I/O expansion.
The bus is hybrid in nature providing the facility to connect either serial or parallel I/O modules. The parallel bus is used for high speed data transfer.
The unit can communicate either using serial communications (RS232,RS485), Ethernet, or CANbus.
The Ethernet version of the product supports an integrated web server permitting Internet and Intranet applications.
The iPAC-8000 can be used as an intelligent distributed data acquisition front end connected to a Host machine running a standard SCADA package, or alternatively it can be user programmed as an autonomous controller running an embedded software application. Significant non volatile memory is available for data and program storage.
-

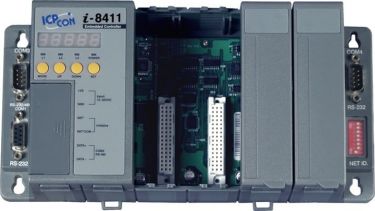

ICPDAS PAC I-8411
Serial embedded controller (C Language Based)
● Serial Port-based embedded controller
● Equipped with MiniOS7
● Provides API Functions for: i-8K, i-87K I/O, 7-SEG LED display, RTC (Real Time Clock), EEPROM, and more
● Updating the firmware, and download programs via the RS-232 port
● Hardware designed to protect software
● Innovation design on reliability, flexibility and expansibility
● Built-in WatchDog Timer
● Input protection circuitry
● High-performance integrated power supply
● Ventilated housing designed to work between -25 °C~ +75 °C -

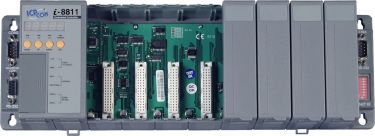

ICPDAS PAC I-8811
Serial embedded controller (C Language Based)
● Serial Port-based embedded controller
● Equipped with MiniOS7
● Provides API Functions for: i-8K, i-87K I/O, 7-SEG LED display, RTC (Real Time Clock), EEPROM, and more
● Updating the firmware, and download programs via the RS-232 port
● Hardware designed to protect software
● Innovation design on reliability, flexibility and expansibility
● Built-in WatchDog Timer
● Input protection circuitry
● High-performance integrated power supply
● Ventilated housing designed to work between -25 °C ~ +75 °C -

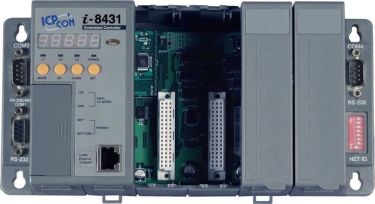

ICPDAS PAC I-8431
Serial embedded Ethernet controller with 4 I/O slots
● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7 -

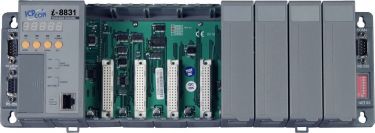

ICPDAS PAC I-8831
Serial embedded Ethernet controller with 8 I/O slots
● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7 -
ICPDAS PAC I-8431-80
Serial embedded Ethernet controller with 4 I/O slots
● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7 -
ICPDAS PAC I-8831-80
Serial embedded Ethernet controller with 8 I/O slots
● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7 -
ICPDAS PAC iP-8811
Standard iPAC-8000 without Ethernet ports and with 8 I/O slots
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Slave I/O Firmware Options (DCON)
● Hardware Diagnostic Functions
● Load Files via RS-232HARDWARE FEATURES:
● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
● Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -

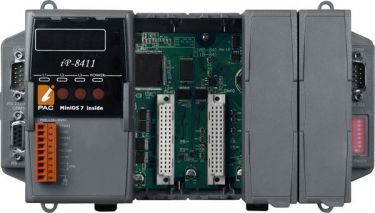

ICPDAS PAC iP-8411
Standard iPAC-8000 without Ethernet ports and with 4 I/O slots
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Slave I/O Firmware Options (DCON)
● Hardware Diagnostic Functions
● Load Files via RS-232HARDWARE FEATURES:
● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
● Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -

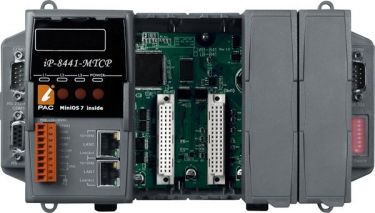

ICPDAS PAC iP-8441
Standard iPAC-8000 with 4 I/O Slots
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library
HARDWARE FEATURES:● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS PAC iP-8841
Standard iPAC-8000 with 8 I/O Slots
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library
HARDWARE FEATURES:● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS PAC iP-8441-FD
Standard iPAC-8000 with 4 I/O Slots and 64 MB Flash
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library
HARDWARE FEATURES:● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS PAC iP-8841-FD
Standard iPAC-8000 with 8 I/O slots and 64 MB Flash
SOFTWARE FEATURES:● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library
HARDWARE FEATURES:● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS PAC I-8437-80
4 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC
● ZigBee Wireless Solution
● Stress Monitoring Application of Constructions
● Data Acquisition Auto-Report System
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Multi-Client Connection
● Remote I/O Modules
● Data Exchange via Fbus or Ebus
● Data Log
● Remotely Download Program: Modem_Link
● PWM : Pulse Width Modulation Output
● Parallel DI Counters
● Redundant Bus7000: Redundant Communication of Remote I/O
● EKAN Modbus LED
● SMS: Short Message Service -
ICPDAS PAC I-8837-80
8 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC
● ZigBee Wireless Solution
● Stress Monitoring Application of Constructions
● Data Acquisition Auto-Report System
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Multi-Client Connection
● Remote I/O Modules
● Data Exchange via Fbus or Ebus
● Data Log
● Remotely Download Program: Modem_Link
● PWM : Pulse Width Modulation Output
● Parallel DI Counters
● Redundant Bus7000: Redundant Communication of Remote I/O
● EKAN Modbus LED
● SMS: Short Message Service -

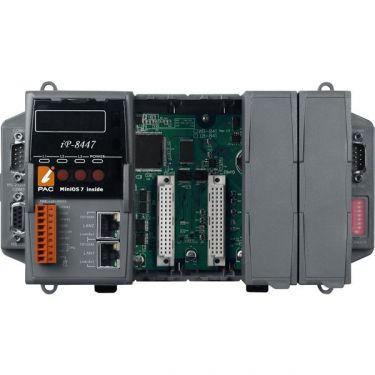

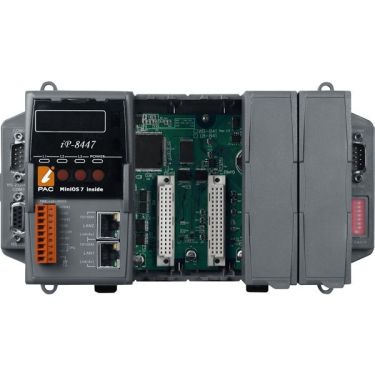

ICPDAS PAC iP-8447
4 slots Faster CPU (80 MHz) Dual Ethernet ISaGRAF PAC
SOFTWARE FEATURES:
● MiniOS7 Embedded Operating System (DOS-like)
● ISaGRAF Ver.3 SoftLogic Inside
● Support IEC 61131-3 Standard
● Accepts max. 64 KB ISaGRAF code size
HARDWARE FEATURES:
● 80186 CPU (16-bit & 80 MHz)
● Dual Battery Backup SRAM (512 KB)
● 64-bit Hardware Serial Number for Protection
● 4 Expansion Slots (support High Profile I/O Modules)
● Support I/O Module Hot Swap
● Dual 10/100M Ethernet Ports
● 4 Serial Ports (RS-232/485)
● Redundant Power Inputs -
ICPDAS PAC iP-8847
8 slots Faster CPU (80 MHz) Dual Ethernet ISaGRAF PAC
SOFTWARE FEATURES:
● MiniOS7 Embedded Operating System (DOS-like)
● ISaGRAF Ver.3 SoftLogic Inside
● Support IEC 61131-3 Standard
● Accepts max. 64 KB ISaGRAF code size
HARDWARE FEATURES:
● 80186 CPU (16-bit & 80 MHz)
● Dual Battery Backup SRAM (512 KB)
● 64-bit Hardware Serial Number for Protection
● 8 Expansion Slots (support High Profile I/O Modules)
● Support I/O Module Hot Swap
● Dual 10/100M Ethernet Ports
● 4 Serial Ports (RS-232/485)
● Redundant Power Inputs -

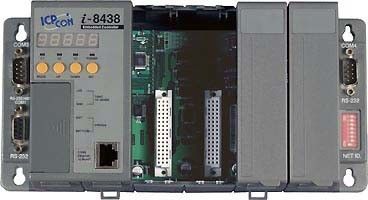

ICPDAS PAC I-8438-G
Matlab embedded controller with 4 Slots
● RS232 & Ethernet Communication Interfaces
● Reduce the design cycle of your product
● The extensibility of I/O driver blocks -
ICPDAS PAC I-8838-G
Matlab embedded controller with 8 Slots
● RS232 & Ethernet Communication Interfaces
● Reduce the design cycle of your product
● The extensibility of I/O driver blocks -
ICPDAS I-8417
4-slots 40 MHz ISaGRAF PAC
SOFTWARE FEATURES:
●MiniOS7 Embedded Operating System (DOS-like)
● ISaGRAF Ver.3 SoftLogic Inside
● Support IEC 61131-3 Standard
● Accepts max. 64 KB ISaGRAF code size
HARDWARE FEATURES:
● 80188 CPU (16-bit & 40 MHz)
● 512 KB SRAM & 512 KB Flash
● 4 I/O Expansion Slots (support High/Low Profile I/O Modules)
● 3 or 4 Serial Ports (RS-232, RS-485) -
ICPDAS I-8817
8 Slots 40 MHz ISaGRAF PAC
SOFTWARE FEATURES:
● MiniOS7 Embedded Operating System (DOS-like)
● ISaGRAF Ver.3 SoftLogic Inside
● Support IEC 61131-3 Standard
● Accepts max. 64 KB ISaGRAF code size
HARDWARE FEATURES:
● 80188 CPU (16-bit & 40 MHz)
● 512 KB SRAM & 512 KB Flash

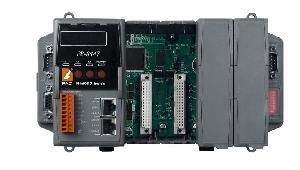

● 4 I/O Expansion Slots (support High/Low Profile I/O Modules)
● 3 or 4 Serial Ports (RS-232, RS-485)
