uPAC-5000
The ICP DAS μPAC-5000 Series is the new generation palm-size PAC (Programmable Automation Controller). It is equipped a 80186 CPU (80MHz) running a MiniOS7 operating system, various connectivity (Ethernet, RS-232/485) and an I/O expansion bus.
The μPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using MiniOS7 gives it the ability to lanuch programs that developed by Turbo C, Borland C or ISaGRAF (PLC programming). It give users all of the best features of both traditional PLCs and PCs.
For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for μPAC-5000 series, users can choose one of them to expand hardware features.
-

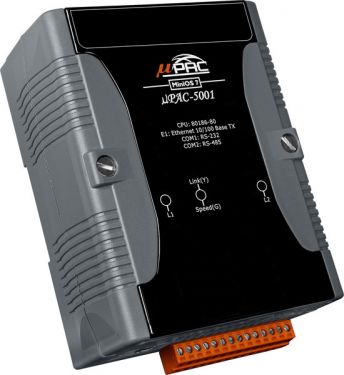

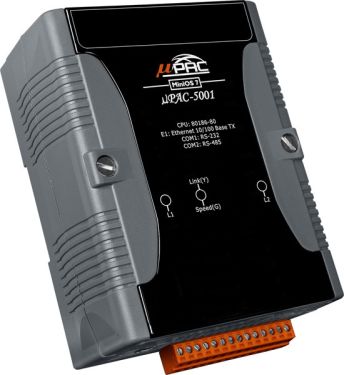

ICPDAS μPAC-5001
MiniOS7 based Ethernet μPAC (Regular version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001D
MiniOS7 based Ethernet μPAC (Regular version) with LED Display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001P
MiniOS7 based Ethernet μPAC (PoE version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001PD
MiniOS7 based Ethernet μPAC (PoE version) with LED Display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001-FD
MiniOS7 based Ethernet μPAC (Regular version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001-FDD
MiniOS7 based Ethernet μPAC (Regular version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001P-FD
MiniOS7 based Ethernet μPAC (PoE version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5001P-FDD
MiniOS7 based Ethernet μPAC (PoE version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 kB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002
MiniOS7 based Ethernet μPAC (Regular version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002D
MiniOS7 based Ethernet μPAC (Regular version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002-FD
MiniOS7 based Ethernet μPAC (Regular version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002-FDD
MiniOS7 based Ethernet μPAC (Regular version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002P
MiniOS7 based Ethernet μPAC (PoE version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002PD
MiniOS7 based Ethernet μPAC (PoE version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002P-FD
MiniOS7 based Ethernet μPAC (PoE version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002P-FDD
MiniOS7 based Ethernet μPAC (PoE version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 64 MB NAND Flash Disk)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002-NV
MiniOS7 based Ethernet μPAC (Regular version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002-NVD
MiniOS7 based Ethernet μPAC (Regular version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002P-NV
MiniOS7 based Ethernet μPAC (PoE version)
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C -
ICPDAS μPAC-5002P-NVD
MiniOS7 based Ethernet μPAC (PoE version) with LED display
● MiniOS7 Inside
● C Language Programming (TCP/IP Library & Modbus Library)
● Various Storage Media (512 KB Flash, 16 KB EEPROM, microSD, 1 MB NVRAM)
● Various Communication Interfaces (10/100 Base-TX Ethernet and RS-232/485)
● 64-bit Hardware Serial Number
● I/O Expansion Bus
● Redundant Power Inputs
● PoE (Power over Ethernet)
● Operating Temperature: -25 °C ~ +75 °C
