Unmanaged Ethernet Switch
.png "Unmanaged Ethernet Switch")
ICPDAS provides a wide range of industrial unmanaged Ethernet switches that support Gigabit and fast Ethernet options with copper/fiber connectors. These rugged switches meet strict industry standards to make them ideal for harsh environments. Other industrial-grade features include a -40 to 75°C operating temperature, hardened case, broadcast storm protection, and dual power inputs.
-
ICPDAS NS-205A
Unmanaged 5-Port Industrial Ethernet Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Provides broadcast storm protection
● Supports 4 kV Ethernet ESD protection and 1 kV EFT protection
● Provides ESD protection 4 kV, EFT protection 3 kV and Surge protection 2 kV for power line
● Supports redundant +12 ~ 48 VDC power input
Reverse Polarity Protection
● Supports operating temperatures from -40 ~ +75 °C
● DIN-Rail Mounting -
ICPDAS NS-205
Unmanaged 5-Port Industrial Ethernet Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Integrated look-up engine with dedicated 1024 unicast MAC addresses
● MTBF = 438.000 hours( Temperature is 25 °)
● Supports +10 ~ +30 VDC voltage input
Reverse Polarity Protection
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail Mountable -
ICPDAS NS-205G
Unmanaged 5-Port Industrial 10/100/1000 Base-T Ethernet Switch
● Power saving Technology
Max. power savings when connected devices are powered down, power saving up 60%
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
●10 Gbps high performance memory bandwidth
● Power Input +10 ~ +30 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail -
ICPDAS NS-208
Unmanaged 8-Port Industrial 10/100 Base-TX Ethernet Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 2 Gbps high performance memory bandwith
● Power Inputs +10 VDC ~ +30 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail Mountable -
ICPDAS NSM-108
Unmanaged 8-Port Industrial 10/100 Base-TX Ethernet Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 2 Gbps high performance memory bandwith
● Power Inputs +10 VDC ~ +30 VDC
● Supports operating temperatures from -40°C ~ +75 °C
● DIN-Rail -
ICPDAS NS-208AG
Unmanaged 8-Port Industrial 10/100/1000 Base-T Ethernet Switch With Power Input +12 ~ 48 VDC
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 16 Gbps high performance memory bandwith
● Power Inputs +12 ~ 48 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail Mounting -
ICPDAS NS-208G
Unmanaged 8-Port Industrial 10/100/1000 Base-T Ethernet Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 16 Gbps high performance memory bandwith
● Power Inputs +10 ~ 30 VDC
● Supports operating temperatures from -40°C ~ +75 °C
● DIN-Rail -
ICPDAS NSM-208G
Unmanaged 8-Port Industrial 10/100/1000 Base-T Ethernet Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 16 Gbps high performance memory bandwith
● Power Inputs +12 ~ 48 VDC
● Supports operating temperatures from -40°C ~ +75 °C
● DIN-Rail -

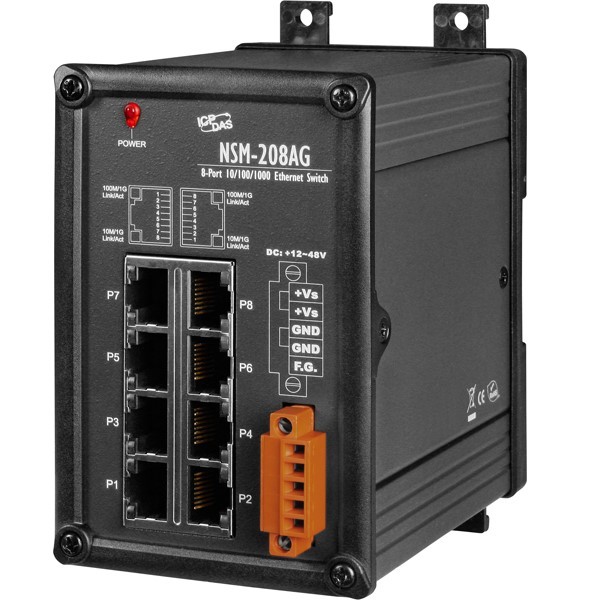

ICPDAS NSM-208AG
Unmanaged 8-Port Industrial 10/100/1000 Base-T Ethernet Switch With Power Input +12 ~ 48 VDC
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 16 Gbps high performance memory bandwith
● Power Inputs +12 ~ 48 VDC
● Supports operating temperatures from -40°C ~ +75 °C
● DIN-Rail Mountable -
ICPDAS NS-205FT
Unmanaged 4-Port Industrial 10/100 Base-T(X) with 100 Base-FX Fiber Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10 ~ +30 VDC voltage
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mounting for industrial usage -
ICPDAS NS-206FC
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Frame buffer memory: 256 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10 ~ +30 VDC voltage
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail Mount for industrial usage -
ICPDAS NS-206FCS
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Frame buffer memory: 256 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10 ~ +30 VDC voltage
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail Mounting for industrial usage -
ICPDAS NS-206FT
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Frame buffer memory: 256 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10 ~ +30 VDC voltage
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mount for industrial usage -
ICPDAS NSM-205FC
Unmanaged 4-Port Industrial 10/100 Base-T(X) with 100 Base-FX Fiber Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Frame buffer memory : 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30 VDC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mount and Screw hole for wall mounting kit -
ICPDAS NSM-205FCS
Unmanaged 4-Port Industrial 10/100 Base-T with 100 Base-FX Fiber Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0 ~ +70°C
● DIN rail mount and Screw hole for wall mounting kit -
ICPDAS NSM-206FC
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● IP20, rugged high-strength metal case
● DIN-Rail or Wall Mounting -
ICPDAS NSM-205FT
Unmanaged 4-Port Industrial 10/100 Base-T(X) with 100 Base-FX Fiber Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN rail mount and Screw hole for wall mounting kit -
ICPDAS NSM-206FCS
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Redundant Power Inputs +10 ~ +30 VDC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● IP20, rugged high-strength metal case
● DIN-Rail mount and Screw hole for wall mounting kit -
ICPDAS NSM-206FT
Unmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.6 Gbps high performance memory bandwidth
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● IP20, rugged high-strength metal case
● DIN-Rail and Wall Mounting -
ICPDAS NSM-209FC
Unmanaged 8-Port Industrial 10/100 Base-T with 100 Base-FX Fiber Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Redundant Power Inputs +10 ~ +30 VDC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● IP20, rugged high-strength metal case
● DIN-Rail mount for industrial usage
