Real-time Redundant Ring Switch
The Real-time Redundant Ring Switch offers fault-tolerant industrial Ethernet with ring network topology. The built-in ICP DAS proprietary Cyber-Ring technology detects and recovers from a fiber or copper link failure within approximately 300ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol. And, the relay output facility can deliver warning signal while dual power or network link failure.
10 artikel(en)
per pagina
-
ICPDAS RS-405
5-Port Real-time Redundant Ring Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses.
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from -30 °C ~ +75 °C
● DIN-Rail Mount for industrial usage -

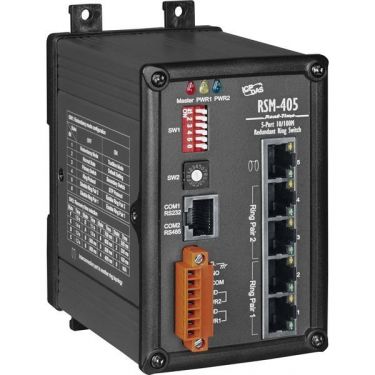

ICPDAS RSM-405
5-Port Real-time Redundant Ring Switch with metal case
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses.
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from -30°C ~ +75°C
● DIN-Rail Mount for industrial usage -

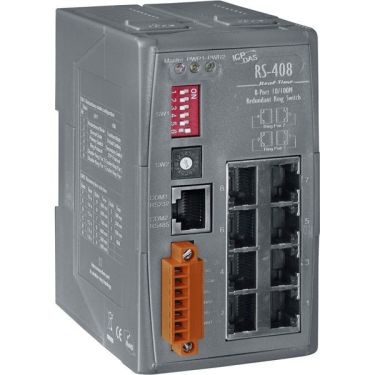

ICPDAS RS-408
8-Port Real-time Redundant Ring Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30VDC
Power failure alarm by relay output
● Supports operating temperatures from -30 °C ~ +75 °C
● DIN-Rail mounting for industrial usage -

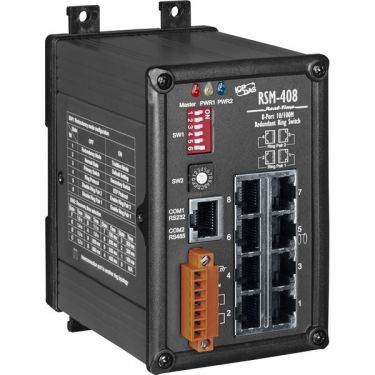

ICPDAS RSM-408
8-Port Real-time Redundant Ring Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from -30°C ~ +75°C
● DIN-Rail mount and screw hole for wall mounting kit -
ICPDAS RS-405FC
Multi-mode, SC Connector, 3-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30 VDC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mounting and screw hole for wall mounting kit -
ICPDAS RSM-405FC
Multi-mode, SC Connector, 3-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch with metal case
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0°C ~ +70°C
● DIN-Rail mount and screw hole for wall mounting kit -
ICPDAS RS-405FCS
Single-mode, SC Connector, 3-Port 10/100 Base-T(X) + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0°C ~ +70°C
● DIN-Rail mount and screw hole for wall mounting kit -
ICPDAS RSM-405FCS
Single-mode, SC Connector, 3-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch with metal case
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mount and screw hole for wall mounting kit -
ICPDAS RS-405FT
Multi-mode, ST Connector, 3-Port 10/100 Base-T(X) + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0°C ~ +70°C
● DIN-Rail mount and screw hole for wall mounting kit -
ICPDAS RSM-405FT
Multi-mode, ST Connector, 3-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Real-time Redundant Ring Switch Multi-mode with metal case
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 512 Kbit
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
● Supports operating temperatures from 0°C ~ +70°C
● DIN-Rail mount and screw hole for wall mounting kit
