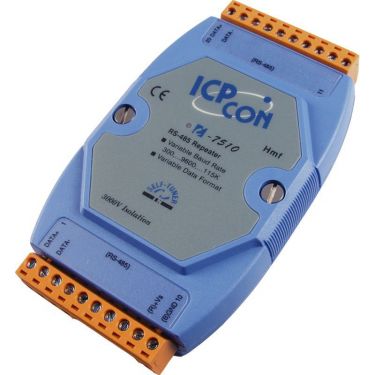

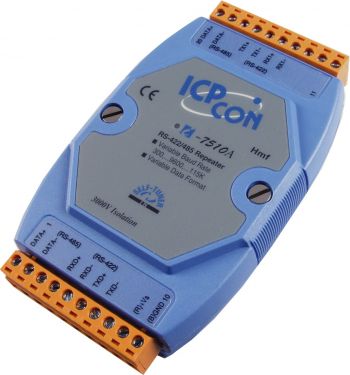

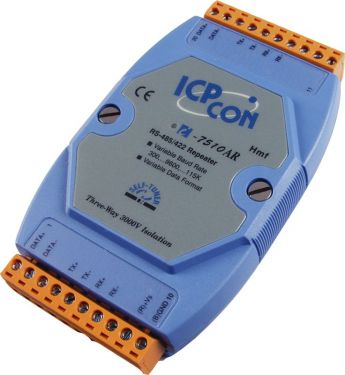

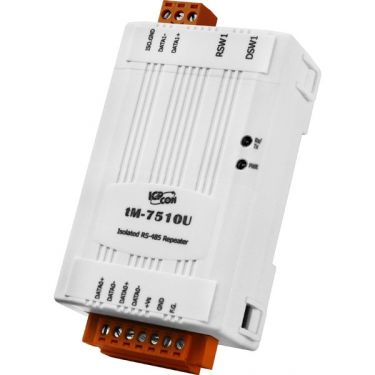

Most industrial computer systems come with standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range and networking capabilities. The RS-422/485 standards overcome these limitations by using differential voltage lines for data and control signals. The RS-422/485 repeater simply amplifies, or boosts, existing RS-422/485 signals to enable them to cover longer distances. It extends the communication distance by 1200m (4,000 ft.) or increases the maximum number of connected nodes by 32.

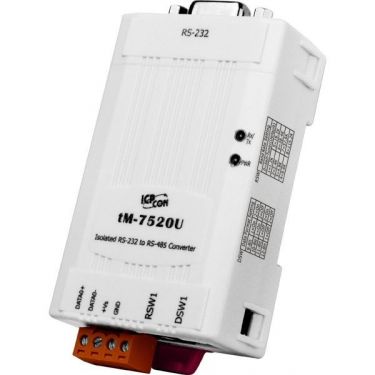

The serial media converters provide conversion between serial networks and other media. They can transparently convert RS-232 signals to RS-422/485 signals, as well as convert RS-422/485 to RS-232 signals without changing the PC's hardware or software. The converter lets you easily build an industrial grade, long distance communication system with standard PC hardware.
-
ICPDAS USB-2560
4-Port Industrial USB 2.0 Hub
● Compliant with USB Specification Revision 2.0
● Built-in NEC uPD720114 USB 2.0 Hub Controller
● Provides 4 Downstream Ports
● Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
● Only Supports Self-powered Mode
+12 ~ 48 VDC Power Input (power adapter included for USB-2560/S)
● Supports Downstream Port Status with LED
● DIN-Rail Mountable -
ICPDAS USB-2020
USB Audio Device
● USB 1.1, 12MHz full speed, fully compliant with USB 2.0 specification
● 16-Bit Delta-Sigma ADC and DAC
● Driving Headphone and Passive Speaker Directly
● Built-in Condenser Microphone Bias
● Volume and Mute Control
● Auto switching USB/external power
● DIN-Rail Mountable -
ICPDAS PCISA-7520R
Isolated RS-232 to RS-485 Converter Card
● No External Power Supply required
● No Driver installation required
● 3000 VDC
● Isolation Protection
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Transmission Speed of up to 115200 bps
● Can be used in an ISA Bus, a PCI Bus or any system with an RS-232 Interface
-
ICPDAS PCISA-7520AR
Isolated RS-232 to RS-422/485 Converter Card
● No External Power Supply required
● No Driver installation required
● 3000 VDC
● Isolation Protection
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Transmission Speed of up to 115200 bps
● Can be used in an ISA Bus, a PCI Bus or any system with an RS-232 Interface
-
ICPDAS I-7520
Isolated RS-232 to RS-485 Converter
● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable
-
ICPDAS I-7520A
Isolated RS-232 to RS-422/485 Converter
● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable -
ICPDAS I-7520R
RS-232 to Isolated RS-485 Converter
● Auto Switching Baud Rate, 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable
-
ICPDAS I-7520AR
RS-232 to Isolated RS-422/485 Converter
● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable
-

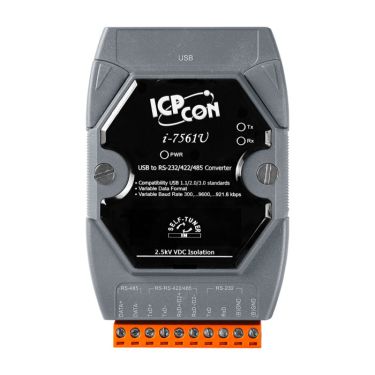

ICPDAS I-7561
USB to Isolated RS-232/422/485 Converter
● Fully Compliant with the USB 1.1/2.0 (High Speed)
● No External Power Supply is required as the I-7561 is powered
● Baud Rate: 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-232/422/485 side
● ESD Protection for the RS-232/422/485 Data Line
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
● DIN-Rail Mountable -
ICPDAS I-7563
USB to Isolated RS-485 Active Star Wiring Converter
● Fully Compliant with USB 1.1/2.0 (High Speed)
● No External Power Supply is required as the I-7561 is powered
● RS-485 Active Star Wiring Applications from the USB Bus
● Baud Rate: 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● ESD Protection for the RS-485 Data Line
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
● DIN-Rail Mountable -
ICPDAS I-7565
USB to CAN Converter
● Microprocessor inside with 20MHz
● RoHS Design
● Fully compliant with USB 1.1/2.0(Full Speed)
● Fully compatible with the ISO 11898-2 standard
● No external power supply is required as I-7565 takes it's power from the USB bus
● 82C250 CAN transceiver
● Transmission speed up to 1M bps for CAN and 921.6K bps for USB
● Support both CAN 2.0A and CAN 2.0B
● Built-in jumper to select 120 ohm terminal resister
● Power, data flow and error indicator for CAN and USB
● 1000 frames in CAN received buffer -
ICPDAS I-7565-H1
High Performance Intelligent USB to CAN Converter
● RoHS Design
● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● Powered by USB bus
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at leastI-7565-H1 1 ms precision
● Support firmware update via USB
● Provide API library for users' program development easily -
ICPDAS I-7565-H2
High Performance Intelligent USB to CAN Converter
● RoHS Design
● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● No external power supply (powered by USB)
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at least ±1ms precision
● Support firmware update via USB
● Provide API library for users' program development easily -
ICPDAS I-7565-CPM
Module with one CAN port, CANopen master library of VC++, 80186 80MHz CPU, 512K flash, 512K SRAM, 120Ω terminator resister selected by jumper.
● NMT: Master
● CANopen Version: DS-301 v4.02
● Error Control: Node Guarding protocol
● Allow EMCY receptions
● Provide dynamic PDO functions
● Fully compliant with USB 1.1/2.0 (Full Speed)
● Support SYNC protocol
● Several transmission types of PDO are supported
● Support SDO download/upload segment protocol
● PWR, ACT, ERR, and Tx/Rx LED indicator -
ICPDAS I-7565-DNM
USB/DeviceNet Master communication Converter with D-sub 9-pin connector.
● Fully compliant with USB 1.1/2.0 (Full Speed)
● No external power supply is required as I-7565 takes it's power from the USB bus
● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125k, 250k, 500k
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function -
ICPDAS I-2541
RS-232/422/485 to Fiber Optic Converter
● Auto Switching Baud Rate, 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-232 side
● ESD Protection for the RS-232/422/485 Data Line
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable -
ICPDAS I-2532
CAN/Fiber Converter
● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Support baud up to 500Kbps
● Jumper for 120 Ω terminator resistor of CAN bus
● Fiber Port: ST (Multi-mode)
● Wave Length: 850 nm
● Auto-baud detection
● up to 100 nodes on CAN port
● Removable terminal block
● DIN-Rail Mountable -
ICPDAS I-2533
CAN/Fiber Bridge
● Fiber Port: ST (Multi-mode)
● Maximum transmission distance up to 2 km at any CAN baud rate
● 82C250 CAN transceiver
● 2500 Vrms iCoupler isolation on the CAN side
● Support both CAN 2.0A and CAN 2.0B
● Fully compatible with the ISO 11898-2 standard
● Build-in switch for 120 Ω terminator resistor
● Up to 100 CAN nodes on each channel
● Removable terminal block
● DIN-Rail Mountable -
ICPDAS I-7550
PROFIBUS to RS-232/422/485 Converter
● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● Max length of in/output data is 128 Bytes
● Address 0 ~ 126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 1.2 ~ 115.2 kbps
● Built-in self-tuner ASIC controller on RS-422/485 port
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection
● DIN-Rail Mountable -
ICPDAS I-7530
Intelligent RS-232 to CAN converter
● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with ISO 11898-2 standard
● Support various bauds from 10K bps to 1M bps
● Jumper for 120Ω terminator resistor
● Software configurable CAN and RS-232 communication parameters
● Power, data flow and error indicator for CAN and RS-232
● Watchdog inside
● Support transparent communication mode
● 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer
